Specs at a glance
-
Max. process pressure (static)
1 bar (15 psi)
-
Maximum standard immersion length
2.200 mm (86,61")
-
Max. immersion length on request
4.525 mm (178,15")
Field of application

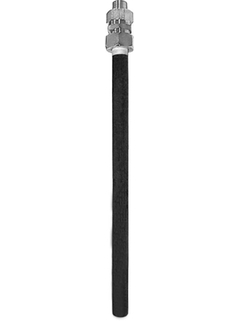

Measuring points with extremely high process temperatures require these special ceramic or metal protection tubes made from special materials. They protect from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety. It is specially designed as replacement part for the high temperature TC thermometer TAF16 by Endress+Hauser.
Applicable for cement production, steel treatment, incinerators and fluidized bed furnaces. Accessory for high temperature assembly TAF16.
Process temperatures up to +1700 °C (+3092 °F).
Benefits
Long lifetime by usage of innovative protection tube materials with increased wear and chemical resistance
Long term stable measurement due to sensor protection with non-porous materials
Replaceable parts
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
