Overzicht specificaties
-
Measurement range
0 to 2.5 AU
0 to 50 OD (depending on optical pathlength) -
Process temperature
0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours -
Process pressure
Max. 100 bar (1450 psi) absolute, depending on the material, pipe size and process connection of the flow assembly
Toepassingsgebied

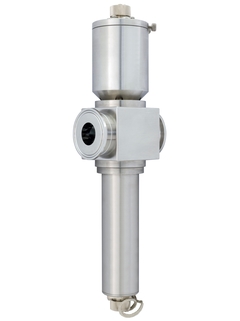

De OUSAF46 UV-sensor bewaakt de concentratie van uw product op twee discrete golflengten. Deze dekt een breed concentratiebereik en ondersteunt u bv. bij het optimaliseren van de chromatografieregeling. De uitstekende filterprestaties waarborgen maximale lineariteit en volledige consistentie met laboratoriumresultaten. Dit levert u snel betrouwbare procesinformatie en verhoogt de opbrengst van uw product. U profiteert ook van Easycal – het gepatenteerde systeem voor eenvoudige, vloeistofvrije online-kalibratie herleidbaar tot NIST.
De OUSAF46-sensor meet de UV-absorptie op twee specifieke golflengten voor:
Meting van eiwitconcentraties
Chromatografieregeling
Permeaat- en retentaatbewaking
Concentratiemetingen van organische mengsels
Aromatendetectie
Filterbewaking
Voordelen
Dekt een breed meetbereik dankzij de tweede UV-golflengte
Snelle en betrouwbare bewaking van productconcentratie voor een betere procesbewaking en vereenvoudigde kwaliteitscontrole
Nauwkeurige meetwaarden met volledige consistentie met laboratoriumresultaten
Optie van gepatenteerd EasycalTM-systeem voor eenvoudige, vloeistofvrije online-kalibratie herleidbaar tot NIST
Uitstekende filterprestaties leveren maximale lineariteit
Geschikt voor reiniging ter plaatse (CIP) en sterilisatie ter plaatse (SIP)
Extended selectie
-
High-end producten
- Functioneel en uiterst doelmatig
Technische topkwaliteit
Eenvoud

-
Eenvoudige producten
- Gemakkelijk te selecteren, installeren en gebruiken
Technische topkwaliteit
Eenvoud
-
Standaardproducten
- Betrouwbaar, robuust en onderhoudsarm
Technische topkwaliteit
Eenvoud
-
Gespecialiseerde producten
- Ontworpen voor veeleisende applicaties
Technische topkwaliteit
Eenvoud
Variabel
FLEX selectie | Technische topkwaliteit | Eenvoud |
---|---|---|
Fundamental selectie Voldoe aan uw basismeetvoorwaarden |
Technische topkwaliteit
|
Eenvoud
|
Lean selectie Beheers eenvoudig uw belangrijkste processen |
Technische topkwaliteit
|
Eenvoud
|
Extended selectie Optimaliseer uw processen met innovatieve technologieën |
Technische topkwaliteit
|
Eenvoud
|
Xpert selectie Beheers uw meest uitdagende applicaties |
Technische topkwaliteit
|
Eenvoud
Variabel |
-
-
Technische informatie (TI)
OUSAF46
Optical sensor with the OUA260 flow assembly for the measurement of UV absorption
