De COS22D is een hygiënische zuurstofsensor waarmee u uw toepassingen beter kunt bewaken en regelen.

Digitale zuurstofsensor

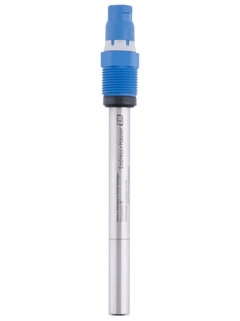

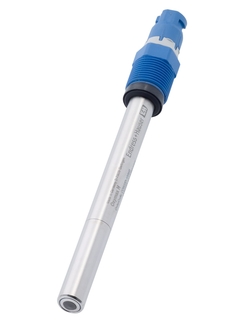

Oxymax COS22D

Memosens amperometrische zuurstofsensor voor standaardtoepassingen alsmede hygiënische en steriele toepassingen

COS22D
Please Wait (spinning wheel)
Prijzen worden geladen
Prijzen tijdelijk niet beschikbaar
Price on request
from CHF ??.-
  • Meetprincipe

    Amperometric oxygen measurement

  • Application

    Beverage, pharmaceutics, biotechnology, water treatment, process, chemical, inertization

  • Installation

    Standard process connection Pg 13.5
    Installation in standard pH assemblies possible

  • Characteristic

    Digital or analog sensor for long-term stable oxygen measurement for frequent sterilization and autoclaving
    CO2 compatible trace sensor for the beverage industry
    Trace sensor in the power plant sector

  • Measurement range

    0.001 to 20 mg/l
    0 to 200 %SAT
    0 to 400 hPa

  • Measuring principle

    Amperometric measurement of oxygen

  • Design

    Membrane-covered 2-electrode oxygen sensor with teflon-membrane, stainless steel sensor

  • Material

    Sensor body: stainless steel 1.4435
    Membrane: PTFE coated stainless steel net with a silicone coating

  • Dimension

    Diameter: 12 mm (0.47 inch)
    Shaft length: 120, 225, 360 and 420 mm
    (4.72, 8.86, 14.2 and 16.5 inch)

  • Process temperature

    -5 to 135 °C (23 to 275 °F)

  • Process pressure

    1 to 12 bar abs (14.5 to 174 psi)

  • Temperature sensor

    Integrated NTC temperature sensor

  • Connection

    Memosens-connection head

  • Additional certifications

    Material certification 3.1
    EHEDG Type EL Class I
