Gateway
for remote monitoring
Connect Sensor FXA30B

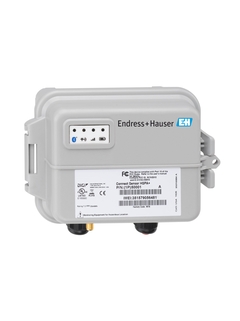

Connect Sensor FXA30- Gateway for remote monitoring ©Endress+Hauser

Battery-powered remote cellular monitoring of connected field devices

Connect Sensor FXA30B is a fully integrated, battery-powered cellular gateway with inputs for connecting to a wide range of field devices. Designed to work in rugged industrial environments, the FXA30B is the ideal solution for remote monitoring in places where power is not easily available. It can even be used as power supply for the field device and measured values can be visualized via the SupplyCare Hosting cloud solution.

  • Voordelen

    • Level, flow and pressure visualization at the desk regardless of location and powered by the gateway in remote areas

    • Especially great for controlling the inventory in typical 3-times-a-day measuring

    • Easy connection to field devices

    • If desired, bundled...

  • Toepassingsgebied

    Battery-powered remote cellular monitoring of connected analog as well as digital field devices via mobile communications.

    • External, configurable power outputs eliminate the need for sensor power supplies

    • Configuration of measuring and transmission...

Kenmerken en specificaties

Terug

Details

  • Meetprincipe

    Fieldgate

  • Input

    4x 4..20 mA analog

    4x digital

    Pulse counter

  • Output

    4x digital

  • Output voltage

    4x digital

  • Memory

    None

  • Power supply

    Battery powered

    8 VDC to 30 VDC

  • Dimensions (WxHxD)

    102 mm x 76 mm x 76 mm

  • Communication interface

    Cellular LTE

    3G

    2G

  • Configuration

    Done by Endress+Hauser

  • Optional

    Worldwide 3G/2G pentaband

    LTE with Version and AT&T (US only)

    Available without battery

  • Certificates

    ATEX, IEC

    FCC

Documenten / handleidingen / software

Accessoires / Spare parts

Nr
Order code
Specification
    • Order code 71327395

      Fixed Antenna: LTE, GSM, UMTS, WLAN

      Vaste antenne voor montage aan verticale oppervlakken. Kabellengte: 3m. Toepassing: LTE 800MHz, LTE 2.6GHz, GSM 900/1800, UMTS, WLAN 2,4 GHz (WiMAX, WiFi). Gebruik: FXA42. Binnen en buiten gebruik. Montage via beugel. Omnidirectionele karakteristiek. Radiator beschermd door een plastic buis. HF-kabel rechtstreeks aangesloten op antenne. 10 cm ruimte tussen de antenne van 15dB isolatie.

    • Order code 71329969

      Spare battery-lithium-thionyl chloride

      Bestaat uit: Lithium-thionylchloride (Li-SOCl2). Type: ER34615 7,2V 14Ah. Niet-oplaadbaar. Gebruik: Connect Sensor FXA30. Geleverd met aansluiting voor verbinding Sensor FXA30. Gevaren Id. UN38.3. Batterijen worden beschouwd als gevaarlijke goederen en er kunnen importheffingen in rekening worden gebracht,afhankelijk van het land van levering.

    • Order code 71329987

      Cellular antenna LTE 746-2700MHz, swivel

      Gebruik: Connect Sensor FXA30, LTE en GSM. Frequenties: 698-960/1710-2170/2500- 2700Mhz. Nominale impedantie: 50 ohm. VSWR: 2,5: 1. Polarisatie: lineair verticaal. Stralingspatroon: omni. Vermogen: 3 watt. De 0 min-2 max. Gewicht: 1.66oz (47g). Lengte x breedte: 228mm x 25mm (9 "x 1"). Werktemperatuur [°C]: -30 tot +70.

    • Order code 71336975

      Mounting kit, Connect Sensor

      Gebruik: Connect Sensor FXA30. Voor wandmontage. Bestaande uit: 4x kleine haakjes. 4x schroeven.

    • Order code

      Unit is not repairable.

    • Order code

      No spare parts available.
