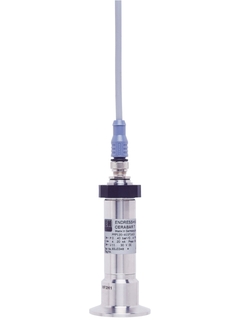

Cerabar T PMP135

Dit product is niet langer leverbaar.

Zie de nieuwe generatie in het deel voorganger/opvolger of neem contact op met uw locale Endress+Hauser-vestiging.

Kenmerken en specificaties

Terug

Details

  • Meetprincipe

    Absolute and gauge pressure

  • Characteristic

    Cost-effective pressure transducer with piezoresistive sensor, and flush mounted metallic diaphragm for hygienic applications

  • Supply voltage

    Analogue output:
    12...30V DC,
    Switch output:
    18...32V DC

  • Reference Accuracy

    0,5%

  • Long term stability

    0,15% of URL/year

  • Process temperature

    -25°C...100°C
    (-13°F...212°F)
    135°C for 1h
    (275°F for 1h)

  • Ambient temperature

    -25°C...70°C
    (-13°F...758°F)

  • Measuring cell

    1bar...40bar
    (15psi...600psi)

  • Max. overpressure limit

    160bar (2320psi)

  • Process connection

    Threads
    Tri-Clamp ISO2852
    Hygienic connections

  • Communication

    4...20mA analogue
    PNP switch

  • Certificates / Approvals

    ATEX

  • Safety approvals

    SIL

  • Design approvals

    EN10204-3.1

  • Hygienic approvals

    3A

  • Specialities

    switch output

Documenten / handleidingen / software

Accessoires / Spare parts

Nr
Order code
Specification

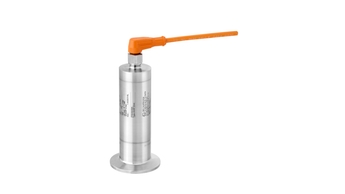

  • Opvolger
