Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
Hazardous area approvals
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
Product headline

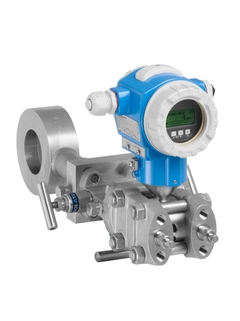

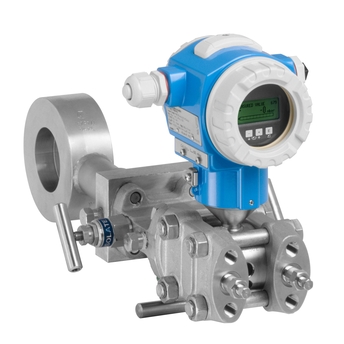

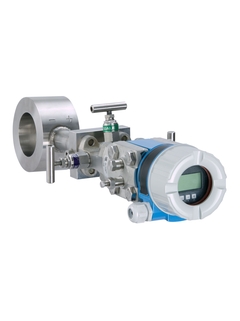

Calculated volume or mass flow measurement. dp primary element (orifice). Orifice plate with carrier ring and single bore corner taps.
Sensor features
Internationally standardized ISO5167-2. Undivided carrier ring. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
Nominal diameter range
DN 25...1000 1" ... 40"
Max. meetfout
typically < 1% of calculated volume or mass acc. ISO5167 without calibration. Uncertainty of primary element excluding uncertainty of density or compensation.
Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
Hazardous area approvals
Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
Product headline
Calculated volume or mass flow measurement. dp primary element (orifice). Orifice plate with carrier ring and single bore corner taps.
Sensor features
Internationally standardized ISO5167-2. Undivided carrier ring. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
Nominal diameter range
DN 25...1000 1" ... 40"
Max. meetfout
typically < 1% of calculated volume or mass acc. ISO5167 without calibration. Uncertainty of primary element excluding uncertainty of density or compensation.
Measuring range
2.5 ... 150'000m3/h 12.5 ... 750'000 kg/h at 10bar/230°C
