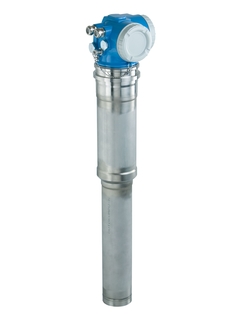

Compact transmitter for point level detection, continuous level, interface and density measurement
-
Simple products
-
Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
-
Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
High-end products
-
Highly functional and convenient
Technical excellence
Simplicity
-
Specialized products
-
Designed for demanding applications
Technical excellence
Simplicity
| FLEX selections |
Technical excellence |
Simplicity |
Fundamental selection
Meet your basic measurement needs
|
Technical excellence
|
Simplicity
|
Lean selection
Handle your core processes easily
|
Technical excellence
|
Simplicity
|
Extended selection
Optimize your processes with innovative technologies
|
Technical excellence
|
Simplicity
|
Xpert selection
Master your most challenging applications
|
Technical excellence
|
Simplicity
|
-
Characteristic / Application
Compact transmitter
Non-contact measuring technique, for extreme process conditions (temperature, pressure)
-
Interface measurement
Interfaces liquid / liquid also with emulsion layers and interfaces liquid / solid
-
Specialities
Interface, density and mass flow measurement
-
-
-
Ambient temperature
-40...60°C
(-40...140°F),
With cooling jacket:
0...120°C
(32...248°F)
-
-
Process pressure / max. overpressure limit
-
-
-
Process connection hygienic
-
Sensor length
PVT scintillator
400mm...2000mm
>2000mm cascade mode
-
Max. measurement distance
Unlimited measuring range
Cascade
-
Communication
4...20 mA HART
FOUNDATION Fieldbus
PROFIBUS PA
-
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC
-
-
Components
Isotope: FSG60, FSG61
Source container: FQG60, FQG61, FQG62, FQG63, FQG66
Display: FHX40
Mounting accessories: FHG60
-
Characteristic / Application
-
-
-
-
Ambient temperature
-40...60°C
(-40...140°F),
With cooling jacket:
0...120°C
(32...248°F
-
-
Process pressure / max. overpressure limit
-
-
-
Process connection hygienic
-
Sensor length
PVT scintillator
400mm...2000mm
>2000mm cascade mode
-
Max. measurement distance
Unlimited measuring range
Cascade
-
Communication
4...20 mA HART
FOUNDATION Fieldbus
PROFIBUS PA
-
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC
-
-
Components
Isotope: FSG60, FSG61
Source container: FQG60, FQG61, FQG62, FQG63, FQG66
Display: FHX40
Mounting accessories: FHG60
-
Characteristic / Application
-
-
-
Ambient temperature
-40...60°C,
(-40...140°F),
With cooling jacket:
0...120°C
(32...248°F)
-
-
Process pressure / max. overpressure limit
-
-
Min. conductivity of medium
-
-
-
Process connection hygienic
-
Sensor length
PVT scintillator 200 mm
PVT scintillator 400 mm
NaI scintillator 50x50mm
-
Communication
4-20mA HART
FOUNDATION Fieldbus
PROFIBUS PA
-
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC
-
-
Components
Isotope: FSG60, FSG61
Source container: FQG60, FQG61, FQG62, FQG63, FQG66
-
Characteristic / Application
-
Specialities
Optional separate housing
-
-
Ambient temperature
-40...60°C
(-40...140°F),
With cooling jacket:
0...120°C
(32...248°F)
-
-
Process pressure / max. overpressure limit
-
-
-
-
Process connection hygienic
-
Sensor length
PVT scintillator 200 mm (8")
PVT scintillator 400 mm (16")
NaJ scintillator 50x50mm (2")
-
Communication
4...20 mA HART
FOUNDATION Fieldbus
PROFIBUS PA
-
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, INMETRO, JPN, NEPSI, EAC
-
-
Components
Isotope: FSG60, FSG61
Source container: FQG60, FQG61, FQG62, FQG63, FQG66
-
Characteristic / Application
Compact transmitter
with PT100 input for
temperature compensation
-
-
Ambient temperature
-40°C...50°C / 60°C
With cooling jacket: 0°C...120°C
-
-
-
-
-
Sensor length
NaJ scintillator 50x50mm
PVT scintillator 200...400mm
-
Output
4-20mA HART
FOUNDATION Fieldbus
PROFIBUS PA
-
Certificates / Approvals
ATEX, FM, CSA, IECEx, TIIS, NEPSI, GOST
-
Components
Isotope: FSG60
Source container: FQG60, FQG61, FQG62, FQG63, QG2000
-
Other approvals and certificates
Most downloaded
-
Gammapilot M FMG60
|
English version - 08/2020
|
Radiometric measurement
|
EN
|
|
|
|
21/08/2020
|
|
|
|
|
10/07/2018
|
|
|
|
|
27/05/2014
|
|
|
|
|
06/03/2013
|
|
|
|
|
22/12/2010
|
|
|
|
|
Language:
|
English
|
|
Version:
|
21/08/2020
|
|
File size:
|
2.5 MB
|
|
File name:
|
TI00363FEN_1720.pdf
|
-
Gammapilot M FMG60
4-20mA HART, PA, FF
Description of Instument Functions
|
English version - 03/2013
|
Compact transmitter for non-invasive limit detection, level, interface
layer and density measurement
|
EN
|
|
|
|
06/03/2013
|
|
|
|
|
01/06/2007
|
|
|
|
|
29/03/2007
|
|
|
|
|
04/11/2005
|
|
|
|
|
01/05/2005
|
|
|
|
|
Language:
|
English
|
|
Version:
|
06/03/2013
|
|
File size:
|
3.8 MB
|
|
File name:
|
BA00287FEN_1312.pdf
|
147 documents
-
Source Container QG 2000
Technical Information
Container with sliding source support rod for manual or pneumatic
ON/OFF
switching
|
EN
|
|
|
|
12/05/2014
|
|
|
|
|
30/04/2003
|
|
|
|
|
Language:
|
English
|
|
Version:
|
12/05/2014
|
|
File size:
|
268 KB
|
|
File name:
|
TI00346FEN_1314.pdf
|
-
Source Container QG020/100
Technical Information
Container with rotary insert for holding source and for maual
switch-ON/switch-OFF
|
EN
|
|
|
|
30/06/2005
|
|
|
|
|
Language:
|
English
|
|
Version:
|
30/06/2005
|
|
File size:
|
543.8 KB
|
|
File name:
|
TI264Fen.pdf
|
-
Gamma Radiation Sources
Technical Information
For level, limit, density and interface measurement; conform to strict
safety standards
|
EN
|
|
|
|
01/09/2002
|
|
|
|
|
Language:
|
English
|
|
Version:
|
01/09/2002
|
|
File size:
|
288.3 KB
|
|
File name:
|
TI213FEN.PDF
|
-
|
EN
|
|
|
|
21/08/2020
|
|
|
|
|
10/07/2018
|
|
|
|
|
27/05/2014
|
|
|
|
|
06/03/2013
|
|
|
|
|
22/12/2010
|
|
|
|
|
Language:
|
English
|
|
Version:
|
21/08/2020
|
|
File size:
|
2.5 MB
|
|
File name:
|
TI00363FEN_1720.pdf
|
-
Gammapilot M FMG60
4-20mA HART, PA, FF
Description of Instument Functions
Compact transmitter for non-invasive limit detection, level, interface
layer and density measurement
|
EN
|
|
|
|
06/03/2013
|
|
|
|
|
01/06/2007
|
|
|
|
|
29/03/2007
|
|
|
|
|
04/11/2005
|
|
|
|
|
01/05/2005
|
|
|
|
|
Language:
|
English
|
|
Version:
|
06/03/2013
|
|
File size:
|
3.8 MB
|
|
File name:
|
BA00287FEN_1312.pdf
|
-
Gammapilot M FMG60
PROFIBUS PA
Operating Instructions
Radiometric measurement
|
EN
|
|
|
|
15/08/2018
|
|
|
|
|
14/09/2015
|
|
|
|
|
12/05/2014
|
|
|
|
|
06/03/2013
|
|
|
|
|
07/10/2009
|
|
|
|
|
Language:
|
English
|
|
Version:
|
15/08/2018
|
|
File size:
|
6.1 MB
|
|
File name:
|
BA00329FEN_1618.pdf
|
-
Gammapilot M FMG60
FOUNDATION Fieldbus
Operating Instructions
Radiometric measurement
|
EN
|
|
|
|
15/08/2018
|
|
|
|
|
14/09/2015
|
|
|
|
|
12/05/2014
|
|
|
|
|
06/03/2013
|
|
|
|
|
07/10/2009
|
|
|
|
|
Language:
|
English
|
|
Version:
|
15/08/2018
|
|
File size:
|
6.2 MB
|
|
File name:
|
BA00330FEN_1618.pdf
|
-
Gammapilot M FMG60
HART
Operating Instructions
Radiometric measurement
|
EN
|
|
|
|
15/08/2018
|
|
|
|
|
12/05/2014
|
|
|
|
|
06/03/2013
|
|
|
|
|
07/10/2009
|
|
|
|
|
23/03/2009
|
|
|
|
|
Language:
|
English
|
|
Version:
|
15/08/2018
|
|
File size:
|
6.1 MB
|
|
File name:
|
BA00236FEN_1518.pdf
|
-
Gammapilot M - Quick Setup
|
EN
|
|
|
|
07/02/2007
|
|
|
|
|
01/12/2004
|
|
|
|
|
Language:
|
English
|
|
Version:
|
07/02/2007
|
|
File size:
|
80.2 KB
|
|
File name:
|
KA242FA2.pdf
|
-
Gammapilot M FMG60
FOUNDATION Fieldbus
Brief Operating Instructions
Radiometric measurement
|
EN
|
|
|
|
13/08/2018
|
|
|
|
|
06/03/2013
|
|
|
|
|
29/12/2010
|
|
|
|
|
Language:
|
English
|
|
Version:
|
13/08/2018
|
|
File size:
|
2.1 MB
|
|
File name:
|
KA01094FEN_1518.pdf
|
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover FMG60, Ex ia (IS), 316L, gasket
Drawing number
Order code
20
52028420
-
Cover FMG60, Ex ia (IS), Alu, gasket
Drawing number
Order code
20
71261143
-
Cover FMG60, Ex d (XP), 316L, gasket
Drawing number
Order code
25
52028467
-
Cover FMG60, Ex d (XP) Alu, gasket
Drawing number
Order code
25
71261142
-
Fixing cooling tube FMG60/FHG65
Drawing number
Order code
70
71071848
-
Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60
-
-
-
-
Rod arm elbow, pipe retainer, FHG60
-
-
-
Cooling tube FMG60, 316L, PVT L=800mm
-
Cooling tube FMG60, 316L,PVT L=1200mm
-
Cooling tube FMG60, 316L,PVT L=1600mm
-
Cooling tube FMG60, 316L, NaI crystal
Drawing number
Order code
70
71003005
-
Cooling tube FMG60, 316L, PVT L=200mm
-
Cooling tube FMG60, 316L, PVT L=400mm
-
Cooling tube FMG60, 316L,PVT L=2000mm
-
Collimator radial, NaI crystal
-
Mounting accessory ref. source FMG60
-
