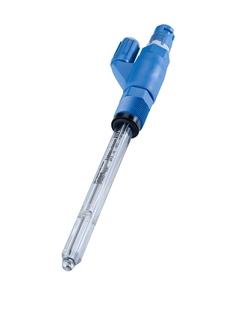

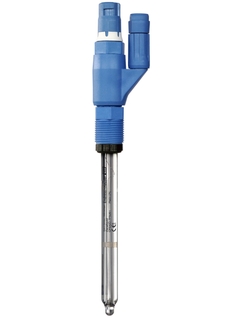

Ceraliquid CPS42D - Memosens ORP glass sensor with refillable liquid KCl electrolyte

Digital ORP sensor
Ceraliquid CPS42D

Memosens glass electrode for applications with fast-changing medium compositions or low conductivity

CPS42D
please wait
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Measurement range

    -1500 mV - +1500 mV

  • Process temperature

    -15°C - 130°C

  • Process pressure

    max. 8bar

Field of application

Ceraliquid CPS42D is the digital high performer for harsh chemical applications, media with low conductivity or a considerable content of organic solvents. The sensor is designed for fast response guaranteeing high process safety even in applications with fast-changing media. Ceraliquid CPS42D is not the latest Memosens generation. To get information on the new Memosens CPS42E sensor with extended functionality, click here.

Media with very low conductivities or a considerable amount of organic solvents or alcohols and fast changing media:

  • Chemical industry

  • Power plants, e.g. boiler feed water

  • Life sciences, e.g. water for injection

With ATEX, FM and CSA approval for use in hazardous areas.

Benefits

  • Resistant to poisoning due to constant refilling of KCl bridge electrolyte and separate reference lead

  • Applicable at very low conductivities (= 5 µS/cm) thanks to liquid KCl electrolyte

  • Suitable for cleaning in place (CIP) and sterilization in place (SIP)

  • Perfectly suited for quickly changing media: Combination of liquid KCl electrolyte and ceramic diaphragm enables fast response time

  • Maximum process safety through non-contact inductive signal transmission

  • Enables predictive maintenance due to storage of sensor and process-specific data

  • Reduced operating costs due to minimized process downtime and extended sensor lifetime
