Spectrometer Memosens Wave CAS80E

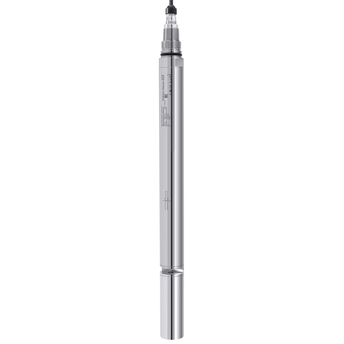

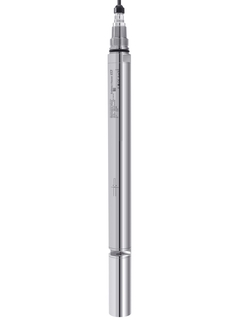

Memosens Wave CAS80E: Digital water and wastewater spectrometer for reliable measured values

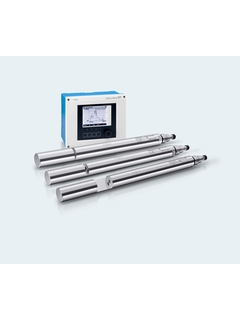

Memosens Wave CAS80E: Digital water and wastewater spectrometer with Liquiline CM44 transmitter

UV-VIS spectrometer for the water & wastewater industry

Memosens Wave CAS80E offers reliable real-time measurements of relevant analytical parameters such as chemical and biological oxygen demand (COD, BOD), turbidity, nitrate and spectral absorption coefficient (SAC) in one single device. It thus increases your efficiency and minimizes costs for your measuring points. The compact, handy Memosens Wave CAS80E spectrometer is easy to install and maintain and ensures reliable, interference-free communication thanks to Memosens digital technology.

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Sizing

Compare

This product is not available in this market.

Specs at a glance
Measurement range

Depending on the path length and the application the meausring range varies between: TOCeq: 0 to 400 mg/l
CODeq: 0 to 20 000 mg/l
BODeq: 0 to 5000 mg/l
SAC254: 0 to 1000 /m
TU: 0 to 800 FAU
TSS: 0 to 10 000 mg/l
NO3-N: 0 to 500 mg/l
APHA/Hazen: 0 to 500 Hazen

Process temperature

5 to 50°C
41 to 122 °F

Process pressure

0.5 to 10 bar abs.
7.3 to 145 psi

Measuring method

UV/VIS Absorbance at 200 to 800 nm

Quick selection

Choose from our suggested options

<%label%>
-- selected coding

-- selected label
<%label%>
Looking for more options? Please use the individual configurator to continue
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Looking for more options? Please use the individual configurator to continue
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

CAS80E

Show details Hide details

Show details

Back to Quick Selection

<%feature%>

<%coding%>

<%label%>

Add to Cart

Optional add-ons

Please use the individual configurator to continue

Individual configuration

Continue your selection from all possible options

Configure

Benefits
Ensures uninterrupted measurements in real time by operating directly in the process.

Benefit from reliable, interference-free communication thanks to Memosens digital technology.

Offers you the analysis of many standard parameters for your water and...

Show more
Ensures uninterrupted measurements in real time by operating directly in the process.

Benefit from reliable, interference-free communication thanks to Memosens digital technology.

Offers you the analysis of many standard parameters for your water and wastewater monitoring. Measures your specific selection of the parameters turbidity, dissolved solids, CODeq, BODeq, TOCeq, SAC₂₅₄, nitrate and the APHA-Hazen color.

The spectrometer is quickly adapted to your specific application through pre-installed analysis models.

Compact, lightweight spectrometer that is very easy to install and convinces with its low-maintenance operation.

Show less

Field of application
The Memosens Wave CAS80E spectrometer is suitable for measuring a wide range of analytical parameters in:
Drinking water
Surface water
Wastewater
Industrial wastewater
Utilities

Features and specifications

Back

Details

Measuring principle

UV absorbance
Characteristic

Insitu (immersion in process), extractive with sample and flow cell UV/VIS spectrometer for measurement of TOCeq, CODeq, BODeq, SAC254, TU/TSS, Nitrate, APHA/Hazen color
Measuring method

UV/VIS Absorbance at 200 to 800 nm
Size

571.4 x 40 mm

21.5 x 1.6 in
Design

40 mm
Process temperature

5 to 50°C

41 to 122 °F
Ambient temperature

-20 to 60°C

-4 to 140 °F
Process pressure

0.5 to 10 bar abs.

7.3 to 145 psi
Specials

G1, NPT3/4 IP68 (1m/3,3ft) water column with 1N KCl during 60 days
Application

Monitoring of WWTP in- and outlet

Drinking water and surface water
Measurement range

Depending on the path length and the application the meausring range varies between: TOCeq: 0 to 400 mg/l

CODeq: 0 to 20 000 mg/l

BODeq: 0 to 5000 mg/l
SAC254: 0 to 1000 /m

TU: 0 to 800 FAU

TSS: 0 to 10 000 mg/l
NO3-N: 0 to 500 mg/l
APHA/Hazen: 0 to 500 Hazen

Show more
Show less

Measuring principle

Absorption
Application

Monitoring of WWTP in- and outlet

Drinking water and surface water
Installation

Insitu (immersion in process), extractive with sample and flow cell
Characteristic

Insitu (immersion in process), extractive with sample and flow cell

UV/VIS spectrometer for measurement of TOCeq, CODeq, BODeq, SAC254, TU/TSS, Nitrate, APHA/Hazen color
Measurement range

"Depending on the path length and the application the meausring range varies between: TOCeq: 0 to 400 mg/l

CODeq: 0 to 20 000 mg/l

BODeq: 0 to 5000 mg/l
SAC254: 0 to 1000 /m

TU: 0 to 800 FAU

TSS: 0 to 10 000 mg/l
NO3-N: 0 to 500 mg/l
APHA/Hazen: 0 to 500 Hazen
Measuring principle

UV/VIS absorbance at 200 to 800 nm
Design

40 mm
Material

Housing: stainless steel or titanium

Windows: sapphire or quartz

O-rings: EPDM
Dimension

571.4 x 40 mm

21.5 x 1.6 in
Process temperature

5 to 50°C

41 to 122 °F
Process pressure

0.5 to 10 bar abs.

7.3 to 145 psi
Temperature sensor

-20 to 60°C

-4 to 140 °F
Connection

G1 and NPT 3/4"
Ingres protection

IP68

Show more
Show less

Measuring principle

UV absorbance
Application

Monitoring of WWTP in- and outlet, drinking water and surface water
Characteristic

Insitu (immersion in process)

Extractive with sample and flow cell UV/VIS spectrometer for measurement of TOCeq, CODeq, BODeq, SAC254, TU/TSS, Nitrate, APHA/Hazen color
Measurement range

Depending on the path length and the application the meausring range varies between: TOCeq: 0 to 400 mg/l

CODeq: 0 to 20 000 mg/l

BODeq: 0 to 5000 mg/l
SAC254: 0 to 1000 /m

TU: 0 to 800 FAU

TSS: 0 to 10 000 mg/l
NO3-N: 0 to 500 mg/l
APHA/Hazen: 0 to 500 Hazen
Design

40 mm
Material

Housing: stainless steel or titanium

Windows: sapphire or quartz

O-rings: EPDM
Process temperature

5 to 50°C

41 to 122 °F
Process pressure

0.5 to 10 bar abs.

7.3 to 145 psi
Temperature sensor

-20 to 60°C

-4 to 140 °F
Connection

G1 and NPT 3/4"
Ingres protection

IP68

Show more
Show less
