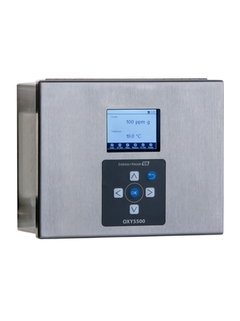

Product picture OXY5500 oxygen analyzer box, right angle view

OXY5500 oxygen analyzer

Accurate and reliable O2 measurements for natural gas and gas processing applications

OXY5500
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Measured Variables

    Concentration
    Cell Pressure
    Cell Temperature

  • Hazardous area approvals

    ATEX / IECEx - Zone 2
    CSA Class I, Division 2

Field of application

The OXY5500 oxygen analyzer is a compact, stand-alone, single channel analyzer that uses quenched fluorescence (QF) technology to reliably measure oxygen in natural gas and gas processing applications. A sensor probe is inserted into the process stream and is connected to the controller by an optical fiber. Featuring an LCD display and built-in data logger, the OXY5500 also has full sample conditioning systems available as well as software for a PC interface.

  • Natural gas quality measurements in production, storage, transportation, and distribution

  • Monitoring in natural gas, upstream of production and gathering sites

  • Measurable range from ppm levels to 0-20% O2

  • Trace measurements as low as 0-10 ppmv oxygen in hydrogen for electrolyzer applications

  • Ideal for CCUS applications since optical oxygen measurement is unaffected by CO2 or H2S in the process

Benefits

  • Easy to navigate display and menu

  • Small optical sensor with no membrane or consumable chemicals

  • Optical measurement with fast, continuous response

  • Excellent long-term stability

  • Not affected by H2S

  • No moving parts, simple operation

  • Data logging for 30 days
