Prosonic Flow Clamp On 92TA1

Dit product is niet langer leverbaar.

Zie de nieuwe generatie in het deel voorganger/opvolger of neem contact op met uw locale Endress+Hauser-vestiging.

Kenmerken en specificaties

Terug

Meetprincipe

Ultrasonic flow
Product headline

Portable volume flow measurement of liquidsfrom outside with "Clamp On" sensors.
Sensor features

Memory for storing 20 measuring sites
Data logger for 40 000 values
PC software for data read-out
Nominal diameter range

U-Sensor:
- DN 15...100
- 1/2"...4"
W-Sensor:
- DN 50...4000
- 2"...160"
P-Sensor:
- DN 50...300
- 2"...12"
Max. measurement error

+/-2.0 %
Measuring range

U-Sensor: 0...424 m3/h
W-Sensor: 0...678'550 m3/h
P-Sensor: 0...678'550 m3/h
Max. process pressure

No limit
Medium temperature range

DN15...4000
-20...+80°C
(-4...+176°F)
DN50...300
-0...+170°C
(32...+338°F)
Degree of protection

IP 50
Display/Operation

Large graphic display.
Push button keyboard.
Outputs

4...20mA
Inputs

4...20mA
Digital communication

PC-Serial (RS 232)

Download type

Filter

PROSONIC FLOW 92 Technical
Portable Ultrasonic Flow Measuring System Temporary volume flow measurement of liquids with

Technische informatie (TI)
Prosonic Flow 92 Operating Instructions
Temporary volume flow measurement of liquids with

Inbedrijfsstellingsvoorschriften (BA)
Change of Directives Special Documentation
Change of Directives

Speciale Documentatie (SD)
Brewery application: Brewhouse, Application 9
Meas. point 8: flow measurement wort Application 1: ultrasonic

Industrieoplossingen (SO)

Engels
Flow measurement in utilities - for the US Market
Energy management in your hands - customized solutions for compressed air, gas, steam and water

Competentie Brochure (CP)

12/10

Engels
Prosonic Flow 92
Productcode: 92TA1- verklaring Number: ID87_0

EU Declaration

Duits , Engels , fr

Zoek

Filter

Order code

Specification

Opvolger

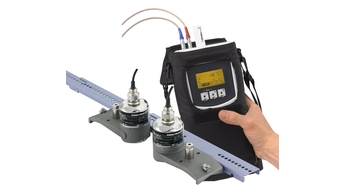

- Prosonic Flow Clamp On 93TA1
