Overzicht specificaties
-
Max. meetfout
Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)
-
Measuring range
9 to 4700 dm3/min (2.5 to 1250 gal/min)
-
Medium temperature range
0 to +60 °C (+32 to +140 °F)
-
Max. process pressure
PN 16, Class 150, 10K
-
Wetted materials
Liner: Polyamide
Electrodes: 1.4435 (316L)
Toepassingsgebied

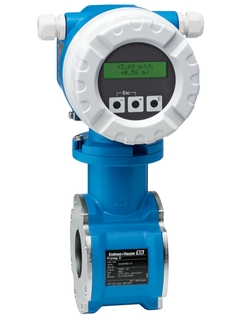

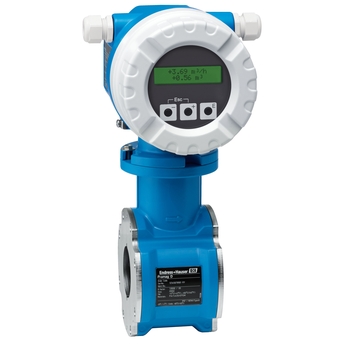

De Promag D, leverbaar als tussenflensuitvoering is ontworpen voor alle toepassingen waar de ruimte zeer beperkt is. Het instrument is de gewenste keuze voor standaardtoepassingen in de waterindustrie. Gecombineerd met de zeer kostenefficiënte Promag 10-transmitter is de Promag 10D de ideale oplossing voor het meten van vloeistoffen voor verschillende toepassingen en leverbaar in een compacte uitvoering of uitvoering met toegang op afstand.
Het meetprincipe wordt nauwelijks beïnvloed door druk, dichtheid, temperatuur en viscositeit
Voor watertoepassingen; ideaal voor plekken waar de ruimte beperkt is en voor kunststof leidingen.
Eigenschappen instrument
Korte inbouwlengte en laag gewicht
Geïntegreerde aardschijven van roestvrij staal
Internationale goedkeuringen voor drinkwater
2-regelig display met drukknoppen
Instrument als compacte uitvoering of uitvoering met toegang op afstand
HART
Voordelen
Eenvoudige, snelle centrering van de sensor – innovatieve behuizing
Energiebesparende flowmeting – geen drukverlies door vernauwing van de doorsnede
Kostenefficiënt – ontworpen voor eenvoudige toepassingen en directe integratie
Veilige werking – op het display kan procesinformatie eenvoudig worden afgelezen
Voldoet aan alle industrienormen – IEC/EN/NAMUR
Onderhoudsvrij – geen bewegende onderdelen
