Dissolved oxygen assembly
Cleanfit COA451

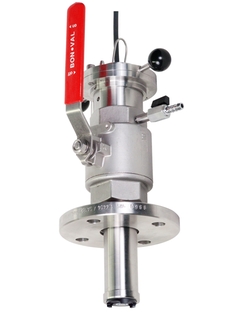

Dissolved oxygen assembly Cleanfit COA451 ©Endress+Hauser

Retractable assembly for water, wastewater and utilities

Cleanfit COA451 is a retractable assembly for all fields of dissolved oxygen measurements. It is equipped with a stop bolt, O-ring seals and a ball valve, enabling complete isolation of process and sensor compartment. This allows you to access the sensor without interrupting the process or emptying the pipe or tank. Better still, benefit from increased process and operational safety and significantly reduced maintenance effort across the whole measuring point.

  • Voordelen

    • One assembly for all applications: The 'one for all' principle optimizes stockholding, speeds up project handling and simplifies life cycle management.

    • Easy and safe maintenance: Sensor service and cleaning without process interruption.

    • Robust design:...

  • Toepassingsgebied

    Cleanfit COA451 is a retractable assembly for oxygen sensors with a diameter of 40mm in:

    • Wastewater treatment plants:
      - O2 control in the aeration basin
      - Process water treatment and monitoring

    • Water works:
      - Status monitoring of drinking water
      - Water...

Kenmerken en specificaties

Terug

Details

  • Meetprincipe

    Sensor Oxygen

  • Application

    Process measurement
    Water and wastewater treatment
    Drinking water
    Monitoring of surface water
    Fish farming

  • Characteristic

    Sensor monitoring and cleaning without process interrupt.

  • Design

    Process holder with manual ball valve and rinse water connection.

  • Material

    Holder : stainless steel 1.4404 (AISI 316L)
    Air relief valve and rinse connection : nickeled brass
    Sealing : Viton

  • Dimension

    Immersion depth : 170mm or 270mm
    (6.63 - 10.53inch)

  • Process temperature

    max. 80°C (176°F)

  • Process pressure

    For manual assembly operation : max 2bar (29psi)
    Medium pressure : max. 10bar (145psi)

Documenten / handleidingen / software

  • Technical Information COA 451

    Manually operated stainless steel assembly with ball valve for the oxygen sensors COS51D/COS61D/COS61 and COS 41

    Technische informatie (TI)
  • Operating Instructions Cleanfit COA451

    Manually operated stainless steel assembly with ball valve for the oxygen sensors COS51D/COS61D/COS61 and COS41

    Inbedrijfsstellingsvoorschriften (BA)
  • SD CleanFit Servicekits / Spare part kits

    CleanFit Wechselarmaturen / Retractable assemblies

    Speciale Documentatie (SD)
  • Cleanfit COA451

    Wechselarmatur zur einfachen Entnahme der Sonde aus dem Prozess unter Prozessbedingungen mit Spülwasseranschluss

    Tender tekst
    11/09
    Duits
  • COA 451

    Changeover armature for easy probe retraction from the process in process conditions, with rinsing water connection

    Tender tekst
    04/09
    Engels
  • CleanFit, CleanFit H, CleanFit P, FlowFit W

    Productcode: CUA451-, CPA875-, CPA871-, CPA475-, CPA474-, CPA473-, CPA472D-, CPA472-, CPA471-, CPA450-, COA451-, CCA250- Regio: Russia (TR CU) Keuringsinstantie: EAC Keurnummer: TC № RU D-DE.AL32.B.02544

    Miscellaneous
    Russisch
  • CleanFit, CleanFit P, FlowFit W

    Productcode: CCA250-, COA451-, CPA450-, CPA471-, CPA472-, CPA472D-, CPA473-, CPA474-, CPA871-, CPA875- Regio: Russia (Declaration of Conformity) Keurnummer: EAEC_N_D-DE.NA10.B.0145718

    Miscellaneous
    Russisch

Accessoires / Spare parts

Nr
Order code
Specification
  • 22
  • 14
  • 5
  • 12
    • Nr 12 Order code 51513163

      Kit COA/CUA451:Sensor holder CUS41 short

      For Sensors CUS41, CUS51D, COS31, COS61, COS61D

  • 3
    • Nr 3 Order code 51513164

      Kit COA/CUA451: Sensor holder CUS41 Long

      For Sensors CUS41, CUS51D, COS31, COS61, COS61D

  • 13
  • 4
  • 2
  • 6,7,9,11,15
    • Nr 6,7,9,11,15 Order code 51513169

      Kit CxA451: Set of small components

      includes 5 bracket, 10 Securing screws 2 Bayonet lock, 15 Grub screw 1 Greace nipple

  • 8,15,16,17,18
  • 8,15,16,17
  • 10
    • Order code 51511613

      Welding adapter R2" 1.4404

    • Order code 50080249

      INLASADAPTER TBV CUA461/ CPA451/ CUA451

      For retractable holder COA 461/CUA 461/ CPA451 / CUA451 / COA451. connection DN50 and ANSI 2". (Gasket to be provided by customer)

    • Order code 50080250

      Montagemof PVC

      Voor montage van een wisselarmatuur CUA461 of COA461

    • Order code 50080251

      Montagemof PP

      Voor montage van een wisselarmatuur COA461 of CUA461.

    • Order code 51500912

      INLASSOK VOOR SPRAYCLEANING VA

      for automatic spray cleaning of sensors CPF81/82 in tubes or tanks welding socket DN 65 with removeable spray jet and flange DN 50 / ANSI 2" for connection of CUA 120-B / CPA451 / CUA451 / COA451 Material: SS / Viton Connection spray tube: Thread R 1/4" Pressure / temperature: 6 bar / 80oC
