Turbimax CUE24

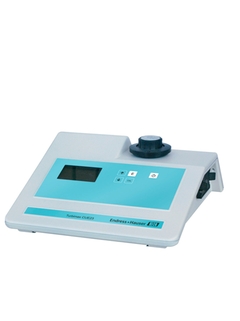

Turbimax CUE24 - Laboratory turbidity meter compliant to US EPA 180.1. ©Endress+Hauser

Dit product is niet langer leverbaar.

Zie de nieuwe generatie in het deel voorganger/opvolger of neem contact op met uw locale Endress+Hauser-vestiging.

Kenmerken en specificaties

Terug

Details

  • Meetprincipe

    Single beam scattered light

  • Application

    Turbidimeter for laboratory measurement

  • Characteristic

    " Versions with white light source
    " Auto ranging 0 ... 1000 NTU
    " Automatic alert when calibration is needed
    " Simple calibration procedures
    " RS-232 output for printing or recording of measured values
    " Reusable calibration standards

  • Measurement range

    0 - 1000 NTU

  • Measuring principle

    Turbidity measurement using standardised 90° scattered light method acc. to U.S.EPA 180.1(White Light)

  • Design

    The transmitted infrared light beam is scattered by the solid matter particles in the medium. The scattered light beams are detected by scattered light receivers which are arranged at an angle of 90° to the light source.

  • Material

    Housing: ABS
    Sample cuvette: Borosilicate glass

  • Dimension

    95 x 254 x 273 mm / 3.75 x 10 x 10.75 inches

  • Process temperature

    0 ... 50 °C / 32 ... 122 °F

  • Process pressure

    Ambient pressure

  • Output / communication

    Uni-directional RS-232 output for recorder

Documenten / handleidingen / software

Accessoires / Spare parts

Nr
Order code
Specification
    • Order code 51518580

      Kalibratiekit CUE21/CUE23/CUE24

      Kant-en-klare oplossingen: 0,02 NTU, 10 NTU en 1000 NTU Toebehoren troebelheidsmeting

    • Order code 51518581

      SET CUVETTEN CUE23

      met beschermkap, 3 stuks Toebehoren voor troebelheidsmeting

    • Order code 71030109

      Lamp module CUE24

      Lichtbron: Wit licht Troebelheidsmeting van reserveonderdelen
