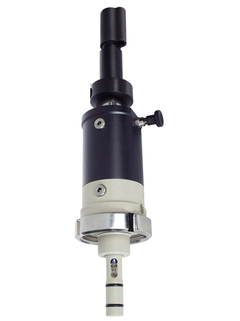

Cleanfit P CPA472

Dit product is niet langer leverbaar.

Zie de nieuwe generatie in het deel voorganger/opvolger of neem contact op met uw locale Endress+Hauser-vestiging.

Kenmerken en specificaties

Terug

Details

Meetprincipe

Sensor ORP / Redox
Application

Water, waste water, process
Installation

Retractable holder
Characteristic

Open and closed tank, piping (min DN80)
Design

- manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber with connection G1/4" or NPT1/4"
Material

Holder: PP, PEEK, PVDF sealing : different material available.
Dimension

Immersion depth: 66 - 215 mm
(2.57 inch - 8.38 inch)
Process temperature

max. 60 or 80°C
(140°F or 176°F)
Process pressure

max. 4 or 6 bar
(58 psi or 140°F)
Connection

Thread G1, 25" external; thread NPT1 "external; flange DN50/ASME2", dairy fitting DN50.

Meetprincipe

Sensor ORP / Redox
Application

Water, waste water, process
Characteristic

- Retractable holder- Open and closed tank, piping (min DN80)
Design

- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connectionG1/4" or NPT1/4"
Material

Holder : PP, PEEK, PVDFSealing : different material available.
Dimension

Immersion depth : 66 - 215mm
(2.57inch - 8.38inch)
Process temperature

max. 60 or 80°C
(140°F or 176°F)
Process pressure

max. 4 or 6bar
( 58psi or 140°F)
Connection

Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.

Meetprincipe

Sensor ORP / Redox
Application

Water, waste water, process
Installation

Retractable holder
Characteristic

Open and closed tank, piping (min DN80)
Design

- manual or pneumatic, can be fully automated with CPC30 / 310.- integrated rinse chamber with connectionG1/4" or NPT1/4"
Material

Holder : PP, PEEK, PVDFSealing : different material available.
Dimension

Immersion depth : 66 - 215mm
(2.57inch - 8.38inch)
Process temperature

max. 60 or 80°C
(140°F or 176°F)
Process pressure

max. 4 or 6bar
( 58psi or 140°F)
Connection

Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.

Documenten / handleidingen / software

Download type

Filter

Technical Information Cleanfit P CPA472
Retractable Process Assembly

Technische informatie (TI)
Technical Information Topcal S CPC310
Fully automatic measuring, cleaning and calibration system in hazardous and non-hazardous areas

Technische informatie (TI)
Operating Instructions Cleanfit P CPA472
Retractable Process Assembly

Inbedrijfsstellingsvoorschriften (BA)
Operating Instructions Cleanfit CPA472D
Retractable Process Assembly

Inbedrijfsstellingsvoorschriften (BA)
Sonderdokumentation Sicherheitskit CPA471/CPA472
Sicherheitskit CPA471/CPA472

Speciale Documentatie (SD)
SD CleanFit Servicekits / Spare part kits
CleanFit Wechselarmaturen / Retractable assemblies

Speciale Documentatie (SD)
perspektiven Umwelt 2014
Kundenmagazin: Wasser ist unser Leben

Klantentijdschrift (CM)

01/14

Duits
Technical article: Automated Retractable Assemblies
Inserting and extracting hermetically sealed process sensors

Publicaties (PU)

05/04

Engels
White Paper-Addressing "Impossible to Measure" pH Applications in the Inorganic Pigments
White paper explaining how automated, retractable pH systems provide a solution in the process measurement of pH in difficult pigment applications.

Industrieoplossingen (SO)

12/01

us
pH 測定セレクションガイド
産業プロセスにおける pH 測定

Competentie Brochure (CP)

08/15

Japans
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application

Competentie Brochure (CP)

04/15

Engels
Measurement and control aspect of pH using inductively coupled with bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an integral part of process. The scrubber efficiency is highlydependent on the pH. Numerous opportunities were revealed for saving time, as well as the cost and materials in power plants. In afossil fuel power plant, the chemical energy stored in coal, oil, natural gas, shale oil, oxygen and air is converted into thermal, mechanical and finally into electrical energy. In other words, water is heated to steam, which spins a steam turbine. The steam turbine drives an electrical generator.

Competentie Brochure (CP)

04/11

Engels
CP01202C pH Sensors:Calibrate, clean, perform a calibration check or...?
This white paper will address Knowing when to do a pH sensor calibration versus a calibration check How to properly clean a pH sensor How to perform a pH sensor calibration A decision tree for step by step guidance

Competentie Brochure (CP)

02/12

Engels
CleanFit, CleanFit P, FlowFit W
Productcode: CCA250-, COA451-, CPA450-, CPA471-, CPA472-, CPA472D-, CPA473-, CPA474-, CPA871-, CPA875- Regio: Russia (Declaration of Conformity) Keurnummer: EAEC_N_D-DE.NA10.B.0145718

Miscellaneous

Russisch
CleanFit, CleanFit H, CleanFit P, FlowFit W
Productcode: CUA451-, CPA875-, CPA871-, CPA475-, CPA474-, CPA473-, CPA472D-, CPA472-, CPA471-, CPA450-, COA451-, CCA250- Regio: Russia (TR CU) Keuringsinstantie: EAC Keurnummer: TC № RU D-DE.AL32.B.02544

Miscellaneous

Russisch

Accessoires / Spare parts

???Toon als PDF???

Zoek

Filter

Order code

Specification

- Order code 71217187

  Manual Kits CPA472 2013

  Toon details Verberg details
- Order code 71162343

  Kit CPA471/472/475: Retr. pipe KCl pneum

  Versie voor directe montage van de sensor zonder demontage van de buis Voor pneumatische versies CPA471/472/475

  Toon details Verberg details
- Order code 71162344

  Kit CPA471/472/475:Retr. pipe KCl manual

  Version for direct assembling of the sensor without disassembling the pipe for CPA471/472 und CPA475 manual except version of CPA475 manual with G11/4" process connection

  Toon details Verberg details
- Order code 51503715

  KIT CPA471/472 stang voor pneumat. kort

  Toon details Verberg details
- Order code 51503716

  CPA471/472 PNEUM.RE.PIPE GEL 225MM

  Toon details Verberg details
- Order code 51503717

  KIT CPA471/472 retr.pipe Gel hand short

  Toon details Verberg details
- Order code 51503718

  KIT CPA471/472 Elek.buis Gel Hand Lang

  Retractable elektrode geleide buis voor Gel sensoren 225 mm

  Toon details Verberg details
- Order code 51503722

  KIT CPA472 elektode pjip PP kort

  Toon details Verberg details
- Order code 51503723

  KIT CPA472 electrode guide PVDF short

  Toon details Verberg details
- Order code 51503724

  KIT CPA472 electrode guide PEEK short

  Toon details Verberg details
- Order code 51503725

  CPA472 PP ELEKTRODEHOUDER LANG 215MM

  Toon details Verberg details
- Order code 51503726

  KIT CPA472 Sensor guide long complete

  Toon details Verberg details
- Order code 51503727

  KIT CPA472 electrode guide PEEK long

  Toon details Verberg details
- Order code 51503730

  KIT CPA47x pneu.connection G1/8 AD6 10p

  KIT CPA471/472

  Toon details Verberg details
- Order code 51503731

  CPA471 borgings schoef

  Toon details Verberg details
- Order code 51503733

  CPA471 M12 STOP

  Toon details Verberg details
- Order code 51503735

  KIT CPA472 air coil, dummy plug PP

  Toon details Verberg details
- Order code 71329949

  KIT CPA47X: Throttel check valve

  Toon details Verberg details
- Order code 51503734

  Kit CPA471/472 cil.schroef M6x30 20 st.

  Toon details Verberg details
- Order code 51503738

  Kit CPA471/472 cil.schroef M6x45 20 st.

  Toon details Verberg details
- Order code 51503748

  KIT CPA472 rinse housing G11/4 0.SPU PP

  Toon details Verberg details
- Order code 51503749

  KIT CPA472 rinse housing G11/4 0.SPU PV

  Toon details Verberg details
- Order code 51503750

  KIT CPA472 rinse housing G11/4 0.SPU PE

  Toon details Verberg details
- Order code 51503751

  KIT CPA472 rinse housing G11/4 G1/4 PP

  Toon details Verberg details
- Order code 51503752

  KIT CPA472 Rinsing housing G11/4 G1/4 PV

  Toon details Verberg details
- Order code 51503753

  KIT CPA472 rinse housing G11/4 G1/4 PE

  Toon details Verberg details
- Order code 51503754

  KIT CPA472 rinse housing NPT 1.0 PP

  Toon details Verberg details
- Order code 51503755

  KIT CPA472 rinse housing NPT1.0 PV

  Toon details Verberg details
- Order code 51503756

  KIT CPA472 rinse housing NPT1.0 PE

  Toon details Verberg details
- Order code 51503757

  KIT CPA472 rinse housing NPT1 NPT1/4 PP

  Toon details Verberg details
- Order code 51503758

  KIT CPA472 rinse housing NPT1 NPT1/4 PV

  Toon details Verberg details
- Order code 51503759

  KIT CPA472 rinse housing NPT1 NPT1/4 PE

  Toon details Verberg details
- Order code 51517522

  Kap tegen spatwater voor armaturen

  Toon details Verberg details
- Order code 51503773

  CPA47x Drukcylinder PA, met O-ring L=100

  Toon details Verberg details
- Order code 51503774

  CPA471/472 cylinder PA lang

  Toon details Verberg details
- Order code 51502874

  Pneumatische eindschakelaar (2st)

  Toon details Verberg details
- Order code 51502873

  KIT CPA47x electr. proxim.switches

  Toon details Verberg details
- Order code 71361237

  Kit Sensor output interface

  Toon details Verberg details
- Order code C-PA071217-41

  Toon details Verberg details
- Order code 51503739

  Kit CPA472 retrofit kit flens DN50 PP

  Toon details Verberg details
- Order code 51503740

  KIT CPA472 retrofit kit flange DN50 PV

  Toon details Verberg details
- Order code 51503741

  KIT CPA472 retrofit kit flange DN50 PE

  Toon details Verberg details
- Order code 51503742

  KIT CPA472 retrofit kit flange ANSI2 P

  Toon details Verberg details
- Order code 51503743

  KIT CPA472 retrofit kit flange ANSI2 PV

  Toon details Verberg details
- Order code 51503744

  KIT CPA472 retrofit kit flange ANSI2 PE

  Toon details Verberg details
- Order code 51503745

  CPA472 MOD. KIT OVERGOOIMOER Rd78 PP

  Toon details Verberg details
- Order code 51503746

  CPA472 MOD. KIT OVERGOOIMOER Rd78 PVDF

  Toon details Verberg details
- Order code 51503747

  CPA472 MOD. KIT OVERGOOIMOER Rd78 PEEK

  Toon details Verberg details
- Order code 71064624

  CPA471...5 afdictingen z medium contact

  Voor alle afdichtingen zonder medium contact.

  Toon details Verberg details
- Order code 51502813

  CPA472 Viton O-ring set FPM

  .

  Toon details Verberg details
- Order code 51502814

  CPA472 O-ringset Kalrez

  Toon details Verberg details
14-1
- Nr 14-1 Order code 71090063

  Kit CPA472/D: 20 pcs. O-ring ID14 W3 FPM

  Toon details Verberg details
- Nr 14-1 Order code 71090065

  Kit CPA472/D: 2 pcs.O-ring ID14W3 KALREZ

  Toon details Verberg details

Voorganger
- CPA460
- CPA463S

Opvolger
- Cleanfit CPA871

  The Cleanfit CPA871 retractable process assembly keeps your process safe – even under demanding conditions.
