Modular thermometer with RTD or TC insert

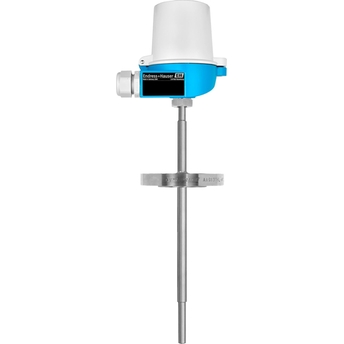

Product picture of modular thermometer MLTTS01 ©Endress+Hauser

Designed for use in the Oil & Gas industry, with flanged process connection and an extension neck

The modular and robust thermometer finds its use especially in the Oil & Gas industry. Harsh environments, corrosive substances and high pressures can be handled by the use of robust thermowells and special materials. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. The thermometer can be ordered either with resistance (RTD) or with thermocouple (TC) insert.

Dit product is niet verkrijgbaar in deze markt.

Snelle selectie

Kies uit één van de voorgestelde opties
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>


Individuele configuratie

Ga verder met uw keuze uit alle mogelijke opties
  • Voordelen

    • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

    • High degree of insert compatibility and design as per DIN 43772

    • Extension neck to protect the head transmitter...

  • Toepassingsgebied

    Designed for use in the Oil & Gas industry with universal range of application

    • Measuring range: Resistance insert (RTD): –50 to +500 °C (–58 to +932 °F), thermocouple (TC): –40 to +1 100 °C (–40 to +2 012 °F)

    • Pressure range up to 63 bar (914 psi)

    • Degree...

Kenmerken en specificaties



  • Meetprincipe

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    modular temperature assembly

    universal range of application

    suitable for hazardous areas

    suitable for high process pressures

    flanged process connection

    incl. protection tube

    with neck

    usable with insert StrongSens

  • Thermowell / protection tube

    incl. protection tube

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    16mm (0,71")

  • Max. immersion length on request

    Not defined

  • Material protection tube/ thermowell


  • Process connection

    Flange DN25 PN40 B1 EN1092-1

    Flange DN25 PN63 B2 EN1092-1

  • Tip shape

    Reduced 12x7x50

  • Operating temperature range

    PT100: -50…500°C

    TC up to 600°C

  • Max. process pressure (static)

    depending on configuration

  • Accuracy

    RTD Class A acc. to IEC 60751

    TC class 1 acc. To EN 60584

  • Response time

    depending on configuration

  • Integration head transmitter


  • Ex - approvals

    ATEX Ex ia

  • Certification

    Not defined

Documenten / handleidingen / software

Accessoires / Spare parts

Order code
    • Order code 71367427

      Spare parts kit ring D21/di 10xgreen,10p

      Verpakkingseenheid: 10 stuks

    • Order code 71389488

      Extension cable TC IEC 2x type K

      L=180mm, 3 stuks

    • Order code TPC100-

      Meetinzet TPC100

      Thermokoppel meetinzet, diam. 3 of 6mm, isolatie MgO, RVS mantel. Opbouw conform EN 60584, DIN 43735, ANSI MC96.1. Warme las geïsoleerd of geaard. Meetbereik type J: -40...750°C Meetbereik type K: -40...1100°C

    • Order code TS111-

      Insert iTHERM TS111

      Vervangbaar, metrische versie volgens DIN43735.

    • Order code MLTWS01-

      Thermowell MLTWS01

      Geflenste bescherming buis

    • Order code TMT182-

      iTEMP TMT182, koptransmitter HART

      Temperatuurtransmitter, Protocol HART. Toepassing: RTD, TC, TC, Ohm, mV. 2-draads 4-20mA, SIL2, galvanische isolatie. Foutreactie: NAAM NE 43. Montage: kopvorm B, DIN EN50446. UL vermeld.

    • Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-draads temperatuurtransmitter. Dubbele universele sensoringang. Galvanische scheiding 2 kV (input/ output). Toepassing: RTD, TC, Ohm en mV. :: Zeer betrouwbaar door drift detectie en sensor back-up. :: Optioneel ook voor veiligheidskritieke applicaties door middel van SIL 2/3 acc. naar IEC61508

    • Order code TMT84-

      iTEMP TMT84, Transmitter PA

      PROFIBUS PA temperatuur transmitter voor kop- of veldmontage met dubbele sensoringang en advanced diagnostics voor sensorbewaking. Profibus PA Profile 3.02. Galvanische isolatie 2kV. Stroomverbruik: 11 mA. Montage: aansluitkop vorm B, DIN EN50446. Standaard fabrieksinstelling: Kanaal 1: Pt100, 3-draads, oC. kanaal 2: inactief. Meerdere configuraties selecteerbaar.

    • Order code TMT85-

      iTEMP TMT85, Transmitter FF

      FOUNDATION Fieldbus temperatuur transmitter voor kop- of veldmontage met dubbele sensoringang en advanced diagnostics voor sensorbewaking. Galvanische isolatie 2 kV Meetsignaal: RTD, TC, Ohm, mV. Stroomverbruik: 11 mA.
