Omnigrad T TSC310

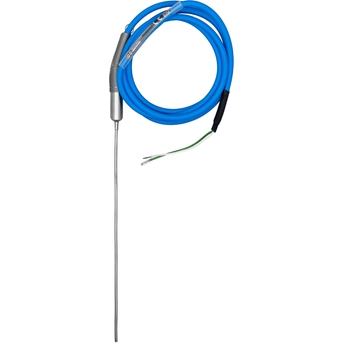

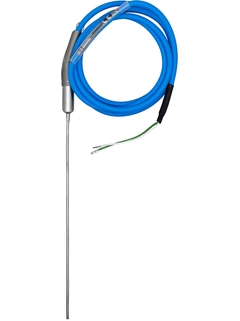

Thermocouple sensor, cable probe

Cost efficient thermocouple sensor designed for use in many process and laboratory applications

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables to detect rapid temperature changes fast and accurate.

Dimensionering
Prijzen na login en configuratie

Vergelijken

Snelle selectie

Kies uit één van de voorgestelde opties

<%label%>
-- selected coding

-- selected label
<%label%>
Zoekt u meer opties? Gebruik dan de individuele configurator om verder te gaan.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Zoekt u meer opties? Gebruik dan de individuele configurator om verder te gaan.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Optionele extra's

Gebruik de individuele configurator om verder te gaan.

Individuele configuratie

Ga verder met uw keuze uit alle mogelijke opties

Configure

Aanvullende componenten

RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
Meer informatie
Vergelijken
RIA46
Field meter with control unit

Multifunctional field meter for monitoring and indication of analog measured values
Meer informatie
Vergelijken
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
Meer informatie
Vergelijken

Voordelen
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)
Types of protection for...

Meer tonen
High flexibility through user-specific insertion lengths and variable process connections
Fast response time
Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)
Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia) and non-Sparking (Ex nA)
NEPSI approval (Ex ia)

Minder tonen

Toepassingsgebied

The resistance thermometer is specially suited to temperature measurement in machinery, power stations and plants in gaseous or liquid media like air, steam, water and oil.

Kenmerken en specificaties

Terug

Details

Meetprincipe

Thermocouple
Characteristic / Application

metric style

cable probe

suitable for hazardous areas

process connection as compression fitting
Thermowell / protection tube

without (not intended to use with thermowell)
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

2,0 mm (0,08'')

3,0 mm (0,12'')

4,5 mm (0,18'')

6,0 mm (0,24'')
Max. immersion length on request

up to 100.000,00 mm (3.937,01'')
Material protection tube/ thermowell

1.4401 (316)

Alloy 600 (2.4816)
Process connection

compression fitting:

G1/4"

G3/8"

G1/2"

NPT1/4"

NPT1/2"
Tip shape

straight
Operating temperature range

Type K:

-40 °C ...1.100 °C

(-40 °F ...2.012 °F)

Type J:

-40 °C ...750 °C

(-40 °F ...1.382 °F)
Max. process pressure (static)

at 20 °C: 25 bar (363 psi)
Accuracy

class 2 acc. to IEC 60584
Response time

t50 = 1 s

t90 = 2 s
Integration head transmitter

no
Ex - approvals

ATEX II

NEPSI

IECEx
Certification

Gost Metrology

Meer tonen
Minder tonen

Documenten / handleidingen / software

Download type

Filter

Technical Information
Omnigrad TSC
Thermocouple thermometers

Technische informatie (TI)
