easytemp TSM470

Product picture of: easytemp TSM470

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Resistance Temperature Detector

  • Input

    Sensor with Pt100 (class A, - 50...150°C)

  • Output

    4...20 mA

  • Auxiliary power supply

    10...35 V DC

  • Communication

    PCP (pc-programmable)

  • Installation

    Process thread orfitting

  • Accuracy

    <= 0,1 K / 0,08 % (transmitter without sensor)

  • Galvanic isolation

    no

  • Certification

    Dust ignition-proof zone 20/21
    GL marine approval
    UL according to 3111-1

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    PC programmable, compact, lower-cost, short delivery times

  • Insert / probe

    not replaceable

  • Process connection

    Thread: G1/2", NPT1/4", adjustable compressionfitting G1/2"

  • Operating temperature range

    -50...150°C

  • Max. process pressure (static)

    50 bar

  • Accuracy

    Klasse A

  • Response time

    t50 = 2.5st90 = 5s

  • Ex - approvals

    GL

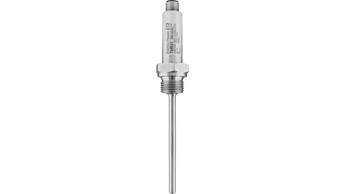

  • Successor

    TMR31

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code TSM470A-VK

      Configuration kit for EASYTEMP TSM 470 Setup software and PC interface cable (TTL/RS232C) for configuration of TSM 470

    • Order code 51007657

      Adapter Upgrade TXU10

      4 pin plug to M12.

    • Order code 51004751

      Collar welding boss d6 PEEK + screw

      moveable with sealing taper, washer + pressure screw G1/2, material of wetted parts: 316L, PEEK, max. Prozessdruck: 10 bar (145 psi)

    • Order code 51004752

      Collar welding boss d6 PEEK w/o screw

      moveable with sealing taper + washer, material of wetted parts: 316L, PEEK, max. process pressure: 10 bar (145 psi)

    • Order code 51007599

      Screw G1/2" + Sealing cone PEEK

    • Order code TA50-HB
    • Order code 51005148

      Cable M12x1 l=5m

      5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.

    • Order code 51006327

      M12 elbow plug ready for cable, IP67,PG7

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code

      The unit is not repairable
