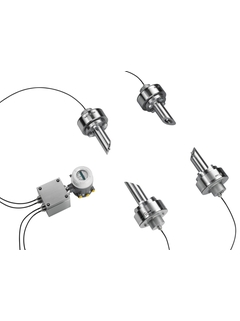

The FLOWSIC300 ultrasonic flowmeter features a unique combination of high quality components, large measuring range, simple installation, and low installation costs. It can be used anywhere where custody approval is not required: For internal measurements in the natural gas grid and with process measurements in the petrochemical industry. FLOWSIC300 incorporates proven technology and components of the rugged custody transfer quality gas flowmeters for custody transfer.
Gas flow measurement in non custody transfer applications
Control measurements in the field of natural gas transfer and storage
Internal measurements for balancing purposes
Device properties:
Modular flexible installation
Non-contact ultrasonic technology without pressure loss
Measuring range span greater than 100 : 1
Sensors can be replaced under pressure
Low sensitivity to pulsation and pressure regulator noise
Remote electronics (max. 15 m)
Bi-directional measurement with automated diagnostics
Benefits
Simple installation into existing pipelines
Efficient solution, especially for pipe diameters over 12 inches, thanks to installation onto existing pipelines and without need for a meter body
Reduced acquisition costs – the sensor extraction tool can be used for multiple devices
Low maintenance, wear and no deterioration
Low operating costs thanks to automated diagnostics and condition-based maintenance
Suitable for installation in underground compartments via remote electronics and sensors with enclosure rating IP 68
