Liquiline System CAT820

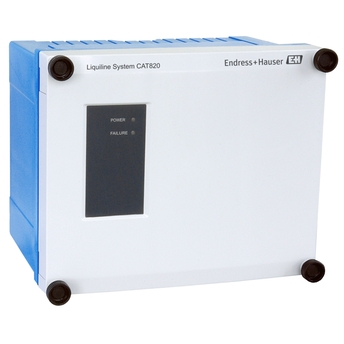

Liquiline System CAT820 - Sample preparation system for aeration, outlets, surface waters ©Endress+Hauser
Liquiline System CAT820 - Flexible sample preparation system combined with Flexdip holder ©Endress+Hauser
  • Liquiline System CAT820 - Sample preparation system for aeration, outlets, surface waters
  • Liquiline System CAT820 - Flexible sample preparation system combined with Flexdip holder

In-situ filtration system for sampling in wastewater treatment plants and surface waters

Liquiline System CAT820 provides clear samples directly from your process. Equipped with Memosens technology, it simplifies commissioning and supports predictive maintenance. Easy cleaning of the special membrane surface and tool-free maintenance reduce your operating costs. CAT820 can be combined with the modular Flexdip holder to facilitate adaption to your process. It is fully controlled by the Liquiline System analyzer, allowing perfect synchronization of your measuring point.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Process temperature

      4 to 40 °C (39 to 104 °F)

    • Process pressure

      Unpressurized

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CAT820
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
Loading price
Prices temporarily unavailable
from CHF 803.-
  • Optional add-ons
Please use the individual configurator to continue
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • Fast commissioning and plug & play thanks to Memosens technology and user-friendly Liquiline operating concept

    • Cost-effective through tool-free maintenance and easy replacement of filter elements

    • Advanced diagnostics with remote access for increased...

  • Field of application

    Liquiline System CAT820 is designed for:

    • Aeration basins and outlets of municipal and industrial wastewater treatment plants

    • Surface waters

    • Taking aqueous samples from industrial processes

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Automatic sample preparation system for supplying process measuring devices with filtered samples

  • Size

    194 x 237 x 162 mm
    7.64 x 9.33 x 6.38 in
    (h x w x d)

  • Design

    Back-flush filter system with various filter mounting options: float, chain and immersion pipe
    Full compatibility to holder CYH112

  • Process temperature

    4 to 40 °C (39 to 104 °F)

  • Ambient temperature

    Unheated: 5 to 50 °C (41 to 122 °F)
    Heated: -20 to 50 °C (-4 to 122 °F)

  • Process pressure

    Unpressurized

  • Specials

    Optional back-flush with pressurizd air (version with Memosens-Technology)
    Controling and parametrization via Liquiline System CA80
    Stand-alone version with time-control available

  • Application

    Sampling from aeration tank and secondary clarification of municipal and industrial wastewater treatment plants
    Sampling of aqueous media from industrial processes

  • Power supply

    100 to 120/200 to 240 V AC 10%, 50/60 Hz

  • Consumables

    Cleaner CY820 for filter and hoses
