Specs at a glance
-
Process temperature
max. 50°C
(max. 122°F) -
Process pressure
max. 6bar
(max.87psi)
Field of application

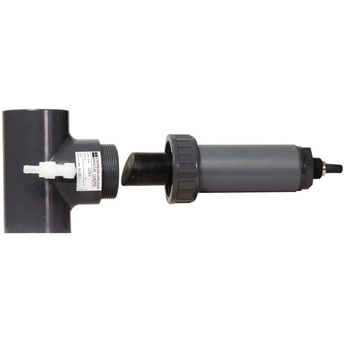

Flowfit CUA250 is a process and flow assembly for turbidity measurement. Continuous in-line measurement of turbidity in aqueous media is used for real-time measurement of non-soluble substances in water for purposes of monitoring, detection of operating states and control applications.
Flowfit CUA250 is a flow assembly for use with turbidity sensors Turbimax CUS31 and CUS41. Typical applications are:
Discharge monitoring in communal and industrial wastewater
Sedimentation monitoring in wastewater treatment (coagulation and flocculation)
Recycling of industrial service water
Filter effluent and filter rupture monitoring
Clear rinse cycle monitoring
Flotation process monitoring
Monitoring of closed circuits, e.g. cooling water and product pipelines
Benefits
Flow assembly featuring simple adaptation to standard piping
Sensor orientation can be adapted to individual requirements of application
Additional cleaning device employs spray cleaning to increase sensor maintenance intervals
Flange adapter for standardized DN 50 flange installation
Success stories
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
Technical Information FlowFit W CUA 250 / CUA 120
Adapter for flow assembly and flange mounting,
optionally available with spray functionEN 01/02/1998Language:
English
Version:
01/02/1998
File size:
140 KB
File name:
ti096cen.pdf
-
-
-
Manufacturer Declaration
Product family: FlowFit W
Product root: CUA250-
Declaration number: HE_01030_01.18
Manufacturer specification: RoHSEN 04/09/2018Language:
English
Version:
04/09/2018
File size:
86.5 KB
File name:
HE_01030_01.18.pdf
-
