Tankvision
Inventory management

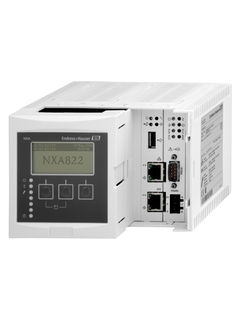

Host Link NXA822

Host Link NXA822 ©Endress+Hauser

Communicates data to other system (Modbus)

The Host Link NXA822 provides data to host systems (such as PLC or DCS) via Modbus as one part of Tankvision. Tankvision is a tank inventory system which is operated by a standard web browser and does not require proprietary software or licensing costs. Tankvision is based on a distributed architecture on a local area network (LAN). Due to its modular structure it is ideally suited for small tank farms with only a couple of tanks, but also for large refineries with hundreds of tanks.

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Input

      Connection to NXA820

    • Output

      Ethernet; Modbus Ethernet; Modbus RS485

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • A robust industrial operating system with embedded software ensures high stability and availability

    • Approved for custody transfer applications according to NMi and PTB

    • Modular design; easily adjustable to any application; can be upgraded as required

    • ...

  • Field of application

    Provides data to host systems (such as PLC or DCS) via Modbus. Suited for small tank farms with only a couple of tanks, but also for large refineries with hundreds of tanks.

    • Ambient temperature: -40 to +60°C (-40 to +140°F)

    • Approved for custody transfer...

Features and specifications

Back

Details

  • Measuring principle

    Level radar

  • Characteristic / Application

    Host link

    Communicates data to other system (Modbus). Up to 10 tank scanners can be assigned to one host link (up to 150 tanks). The inbuild web server enables the user to configure the device.

  • Measuring principle

    Level radar

  • Function

    Host link

    Communicates data to other system (Modbus). Up to 6 Tank Scanner can be assigned to one Host Link (up to 90 tanks). The inbuild web server enables the user to configure the device.

  • Input

    Connection to NXA820

  • Output

    Ethernet; Modbus Ethernet; Modbus RS485

  • Relay output signal type

    Status relais with switching power:

    – 25 VDC, 100 W

    – 250 VAC, 4 A, 1000VA

  • Power supply

    AC: 90...250 VAC

    DC: 10.5...32 VDC

  • Dimensions (WxHxD)

    150x104x140 mm (5.9x4.1x5.5 in)

  • Configuration

    Via web server

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 71071922

      Terminal set NXA820/821/822

      Consists of: 1x terminal 2-pole, 16A. 2x terminal 3-pole, 16A. 1x terminal 3-pole, 12A. 1x terminal 4-pole, 12A. Usage: NXA820/NXA821/NXA822.

    • Order code 71354876

      PC board power supply AC

      Usage: FMU90/FMU95, NXA20, NXA820/NXA821/NXA822.

  • Predecessor
