Specs at a glance
-
Accuracy
(Pt100, -50...200 °C) <= 0,15 K (HART)
(Pt100, -58...392 °F) <= 0,3 °F (HART)
(Pt100) <= 0,1 K (FF, PA)
(Pt100) <= 0,18 °F (FF, PA)
Field of application
Unsurpassed reliability, accuracy and long-term stability in critical processes. The remote configurable transmitter transfers and monitors converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART®, FOUNDATION Fieldbus™-, PROFIBUS® PA-communication. It visualizes the signals on its own backlit display. A field housing allows a direct connection in harsh process areas as well as in hygienic applications as option.
Universal input usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)
HART® protocol for converting various input signals to a scalable 4 to 20 mA analog output signal. Operating the transmitter using handheld terminals Field Xpert SFX350/370, field communicator 475 or remotely via PC
FOUNDATION Fieldbus™ ITK 6.1.2
PROFIBUS® PA Profile 3.02

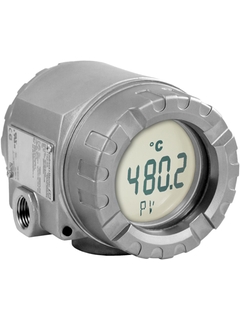

Optional: stainless steel housing for hygienic or Ex d application
Benefits
High reliability in harsh industrial environments due to dual compartment housing and compact, fully potted electronics

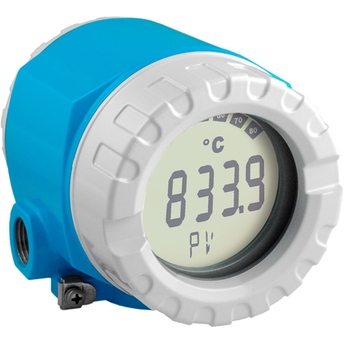

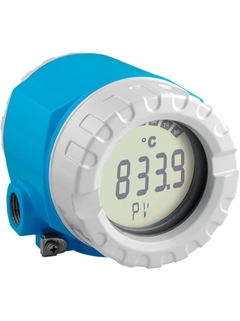

Backlit display with large measured value, bar graph and status condition indication
Diagnostics information according to NAMUR NE107
International approvals such as FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof); marine approval
SIL certification as per IEC 61508:2010
Galvanic isolation 2 kV (sensor input / current output)
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Could also interest you
Search spare parts by number in drawing
Filter
-
-
Display
O-Ring 88x3 HNBR 70° Shore PTFE_5pcs
Drawing numberOrder code671502617 -
-
-
Cable/cable accessories
Cover latch spares kit field housing
Drawing numberOrder code751004948 -
-
-
Fixing
Housing cover blind, 316L Exd ATEX Ex d, FM XP + O-ring CSA XP only as cover of terminal part
Drawing numberOrder code5TMT162X-HA -
-
-
Fixing
Housing cover blind, 316L + O-ring
Drawing numberOrder code5TMT162X-HB -
-
-
Fixing
Housing cover cpl. for display,Ex d,316L ATEX Ex d, FM XP, CSA XP + O-ring
Drawing numberOrder code5TMT162X-HC -
-
-
Fixing
Housing cover cpl. for display, 316L + O-Ring
Drawing numberOrder code5TMT162X-HD -
-
-
Fixing
Housing cover blind, Alu Ex d FM XP + O-ring CSA XP only as cover of terminal part
Drawing numberOrder code5TMT162X-HH -
-
-
Fixing
Housing cover blind, Alu + O-ring
Drawing numberOrder code5TMT162X-HI -
-
-
Fixing
Housing cover cpl. for display,Alu Ex d + O-ring
Drawing numberOrder code5TMT162X-HK -
-
-
Fixing
Housing cover cpl. for display, Alu + O-ring
Drawing numberOrder code5TMT162X-HL -
-
-
Housing/housing accessories
Display HART5 + fitting kit + twist protection
Drawing numberOrder code2TMT162X-DA -
-
-
Housing/housing accessories
Display PA/FF + fitting kit + twist protection
Drawing numberOrder code2TMT162X-DB -
-
-
Housing/housing accessories
Display fitting kit + twist protection
Drawing numberOrder code2TMT162X-DC -
-
-
Housing/housing accessories
Display HART7 + fitting kit + twist protection
Drawing numberOrder code2TMT162X-DD -
-
-
further parts
Spare RFID TAG
Order codeXPRFID- -
-
-
Housing/housing accessories
Electronic TMT162
Drawing numberOrder code4TMT162E- -
-
-
Terminal module
Housing TMT162
Drawing numberOrder code1TMT162G- -
-
-
further parts

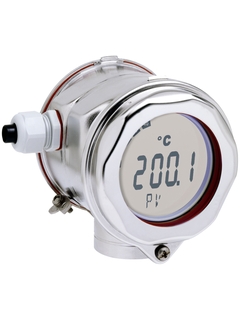

Housing cover blind, T17 316L
Order codeTMT162X-HE -
-
-
further parts
Housing cover cpl. for display, T17,316L polycarbonate
Order codeTMT162X-HF -
-
Mount.bracket st.steel A4 wall/tube 2"
Order code51004823 -
M20x1.5 cable gland, 2xD0.5 cables
Drawing numberOrder code851004653 -
Cable gland NPT1/2, 2xD0.5 cables
Drawing numberOrder code851004654 -
Adapter M20x1.5 exter./M24x1.5 intern.VA
Order code51004915 -
Cable entry M20x1.5
Drawing numberOrder code851004949 -
Mounting bracket 2"tube stainless steel
Order code51006412 -
Cable gland NPT1/2, D4.5-8.5 IP68
Drawing numberOrder code851006845 -
Display fitt.kit field housing (3 piece)
Drawing numberOrder code271310423 -
Integrable Surge Arrester Module
Order code71386275 -
Blind plug M20x1.5 EEx-d+O-ring Alu
Drawing numberOrder code871525620 -
Blind plug M20x1.5 Ex-d+O-ring V4A
Drawing numberOrder code871525622 -
Blind plug G1/2" Ex-d+O-ring Alu
Drawing numberOrder code871525621 -
Blind plug G1/2" Ex-d+O-ring V4A
Drawing numberOrder code871525623 -
Blanks (blind) NPT1/2, 3.1655.53
Drawing numberOrder code851004490 -
Blanks (blind) 1/2NPT V4A
Drawing numberOrder code851006888 -
Fieldbus connector PA M20;M12 L250
Order code71079762 -
Fieldbus connector PA 1/2NPT; M12 L250
Order code71079763 -
Fieldbus connector PA M20;7/8" L250
Order code71079765 -
Fieldbus connector FF M20;7/8" L250
Order code71082008 -
Fieldbus connector FF 1/2NPT;7/8" L250
Order code71082009 -
Service
Order codeDIENST-
