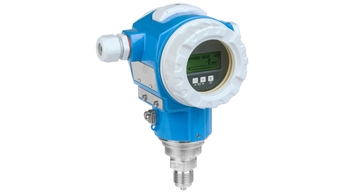

Cerabar S PMP731

Dit product is niet langer leverbaar.

Zie de nieuwe generatie in het deel voorganger/opvolger of neem contact op met uw locale Endress+Hauser-vestiging.

Kenmerken en specificaties

Terug

Details

Meetprincipe

Absolute and gauge pressure
Characteristic / Application

Digital pressure transmitter, piezoresistive polysilicon sensor with welded metal measuring diaphragm
Safety by function monitoring, modular transmitter design
Supply / Communication

4...20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
Ex d[ia]: 13...30V DC
PROFIBUS PA /
Foundation Fielbus:
9...32V DC
Ex ia: 9...24V DC
Accuracy

0,1%
Long term stability

0,1% of URL/year
0,25% of URL/5 years
Ambient temperature

-40°C...85°C
Process temperature

-40°C...100°C
Process pressure absolute / max. overpressure limit

600bar
Pressure measuring range

1bar...400bar
Main wetted parts

Alloy C
316L
Tantal
PTFE-Foil
Process connection

Threads (internal/flush mounted membrane)
Max. measurement distance

4000m H2O
Communication

4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals

ATEX
FM
CSA
TIIS
SIL
NACE
EN10204-3.1
Options

digital display
SS- or Aluminumhousing
Successor

PMP71, PMP72
Application limits

Changing density

Meer tonen
Minder tonen

Meetprincipe

Absolute and gauge pressure
Characteristic

Digital pressure transmitter, piezoresistive polysilicon sensor with welded metal measuring diaphragm
Safety by function monitoring, modular transmitter design
Supply voltage

4...20mA HART:
11,5...45V DC
Ex ia: 11,5...30V DC
Ex d[ia]: 13...30V DC
PROFIBUS PA /
Foundation Fielbus:
9...32V DC
Ex ia: 9...24V DC
Reference Accuracy

0,1%
Long term stability

0,1% of URL/year
0,25% of URL/5 years
Process temperature

-40°C...100°C
Ambient temperature

-40°C...85°C
Measuring cell

1bar...400bar
Max. Turn down

max. 100:1
Max. overpressure limit

600bar
Process connection

Threads (internal/flush mounted membrane)
Communication

4...20mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals

ATEX
FM
CSA
TIIS
SIL
NACE
EN10204-3.1
Successor

PMP71, PMP72

Meer tonen
Minder tonen

Documenten / handleidingen / software

Download type

Filter

Technical Information Cerabar S PMC 731, PMP 731.
Cerabar S with a ceramic or metal sensor overload resistant with function monitoring.
Communication using HART, PROFIBUS-PA
and
Foundation Fieldbus.

Technische informatie (TI)
Cerabar S FOUNDATION Fieldbus Operating Instructions, Software version 0.3
Cerabar S PMP731, PMC731, PMC631, PMP635, Pressure transmitter

Inbedrijfsstellingsvoorschriften (BA)
Cerabar S Operating Instructions PROFIBUS PA
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter

Inbedrijfsstellingsvoorschriften (BA)
Cerabar S Operating Instructions HART, Software version 7.1
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter

Inbedrijfsstellingsvoorschriften (BA)
Mounting bracket instructions Cerabar S.
Mounting bracket.

Short Instruction (KA)

11/95

Duits , Engels , Spaans , fr , Italiaans , Nederlands
Cable kit instructions Cerabar S.
Cable Kit. Installation cable with pressure equalisation tube.

Short Instruction (KA)

10/98

Duits , Engels , Spaans , fr
Safety Instructions Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
FOUNDATION Fieldbus
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)

Ex Veiligheidsinstructies (XA)
Cerabar S PMC631, PMC635, PMP731, PMP635, PMP731
Approval No.: KEMA 97 ATEX 4500

ATEX II 1/2 G, II 2 G Protection: EEx ia IIC T6...T4

4...20 mA HART

Ex Veiligheidsinstructies (XA)
Safety Instructions Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PROFIBUS PA
II 1/2 G, II 2 G EEx ia IIC T6...T4
PTB 98 ATEX 2178 (ATEX)

Ex Veiligheidsinstructies (XA)
Cerabar S PMC631, PMC731, PMP635, PMP731
Approval No.: EG 01 012-b

ATEX II 3 D

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex Veiligheidsinstructies (XA)
Cerabar S PMC631, PMC731, PMP635, PMP731
Approval No.: EG 01 012

ATEX II 3 G Protection: EEx nA II T6

4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Ex Veiligheidsinstructies (XA)
Cerabar S PMP635, PMP731
Approval No.: KEMA 97 ATEX 4467

ATEX II 2 G Protection: EEx d IIC T6...T5

4...20 mA HART, FOUNDATION Fieldbus

Ex Veiligheidsinstructies (XA)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PTB Ex-97.D.2099

PROFIBUS PA, FOUNDATION Fieldbus

Certificaat (ZE)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
PTB Ex-97.D.2099

PROFIBUS PA, FOUNDATION Fieldbus

Certificaat (ZE)
Cerabar S PMC631, PMC635, PMC731, PMP635, PMP731
CSA

Drawing No.: 960338-2030 B

Drawing Type: Control Drawing

4...20 mA HART

Certificaat FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960377-2011 C

Drawing Type: Control Drawing

PROFIBUS PA

Certificaat FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960377-1011 C

Drawing Type: Control Drawing

PROFIBUS PA

Certificaat FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
CSA

Drawing No.: 960364-2075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

Certificaat FM/CSA (ZD)
Cerabar S, Deltabar S PMC631, PMC635, PMC731, PMP635, PMP731, PMD230, PMD235, FMD230, FMD630, FMD633
FM

Drawing No.: 960364-1075 B

Drawing Type: Control Drawing

FOUNDATION Fieldbus

Certificaat FM/CSA (ZD)
Cerabar S, Cerabar M, Cerabar T, Deltabar S PMP731, PMP41, PMP131, PMD235
Erklärung zur Druckgeräterichtlinie

Declaration to Pressure Equipment Directive

Déclaration relative à la Directive Equipements sous Pression

Speciale Documentatie (SD)
Cerabar S PMP731/635, PMC731/631
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit

Speciale Documentatie (SD)
Interoperability Statement: Cerabar S, FOUNDATION fieldbus
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Cerabar S, FOUNDATION fieldbus Pressure Transmitter, Device Revision: 2,
DD Revision: 3, Device ID: 0x1007, Software Revision: 1.71

Speciale Documentatie (SD)
Interoperability Statement: Cerabar S, HART
Endress+Hauser field device has been tested with Rockwell Automation
Integrated Architecture-based host system Allen-Bradley ControlLogix.
Cerabar S, HART Pressure Transmitter, Device Revision: 20, Device ID:
0x18, Software Revision: 2.00

Speciale Documentatie (SD)
Cerabar S PMC 731/631, PMP 731/635 Functional safety manual.
Pressure Transmitter
cerabar S PMC 731/631
cerabar S PMP 731/635
with 4...20 mA output signal
Functional safety manual.

Speciale Documentatie (SD)
