t-trend ATT12A

Product picture of: t-trend ATT12A

Dit product is niet langer leverbaar.

Zie de nieuwe generatie in het deel voorganger/opvolger of neem contact op met uw locale Endress+Hauser-vestiging.

Kenmerken en specificaties

Terug

Details

Meetprincipe

Thermal
Product headline

Simple flow trend monitoring in liquid and gas applications; insertion style
Nominal diameter range

DN 15...200 (1/2"...8")
Max. measurement error

+-5.0%
Max. process pressure

PN 25/40
Medium temperature range

-10...+100°C
(+14...+212°F)
Degree of protection

IP 66
Display/Operation

LED
4-digits
LCD (optional)
Push buttons
Outputs

4...20mA
Open collector
Inputs

-
Hazardous area approvals

CSA (pending)

Meer tonen
Minder tonen

Documenten / handleidingen / software

Download type

Filter

Technical Information: t-trend ATT12A
Flow monitor for air and compressed air

Technische informatie (TI)
Flow measurement in utilities - for the US Market
Energy management in your hands - customized solutions for compressed air, gas, steam and water

Competentie Brochure (CP)

12/10

Engels

Meer tonen
Minder tonen

Accessoires / Spare parts

Zoek

Filter

Nr

Order code

Specification

- Order code

  Spare parts can be ordered only in

  Toon details Verberg details
- Order code

  PC Manchester

  Toon details Verberg details

Meer tonen
Minder tonen

Opvolger

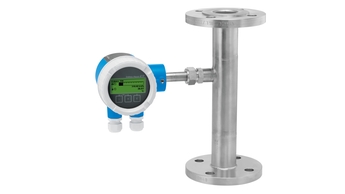

- Proline t-mass A 150 / 6AAB

  The flowmeter for cost-effective measurement and easy monitoring of utility gases. Suitable for air, nitrogen, carbon dioxide and argon in small line sizes.
  Meer informatie
- Proline t-mass B 150 / 6BAB

  The flowmeter for cost-effective measurement and easy monitoring of utility gases. Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts.
  Meer informatie
