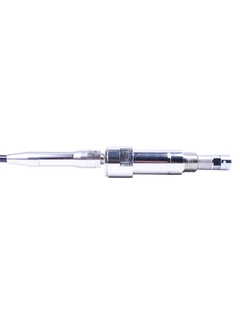

Product picture Raman Rxn-30 probe side view aiming right and down

Raman Rxn-30 probe

Providing reliable, quantitative gas-phase measurements in a process environment

KR30
Please Wait (spinning wheel)
Prijzen worden geladen
Prijzen tijdelijk niet beschikbaar
Price on request
Bezig met activeren van prijs
Prijs: Informatie verstrekken
from CHF ??.-

Overzicht specificaties

  • Hazardous area certifications

    ATEX, CSA, IECEx

Toepassingsgebied

The Raman Rxn-30 probe has cross-industry appeal for its robust gas-phase headspace monitoring, in situ measurements, and material compatibility. Certified for use in hazardous area environments, the Raman Rxn-30 probe can be inserted directly into processes with temperatures up to 150 degrees Celsius and pressures up to 68.9 barg (1,000 psig). It is available with a variety of mounting options for maximum installation and sampling flexibility.

  • Chemical: ammonia, methanol, HyCO, reaction monitoring, blending, catalysis

  • Polymer: polymerization reaction monitoring

  • Gas-phase streams in refining: hydrogen production and recycle fuel blending, fuel characterization

  • Power & Energy: IGCC power plants, gas turbines

  • Pharmaceutical: API reaction monitoring, drying

  • Food & Beverage: fermentations, offgas, volatiles

Voordelen

  • Reliable, quantitative gas-phase measurements

  • In situ measurement/no transfer lines or fast loops required

  • Can be directly inserted into processes with temperatures up to 150 °C and 68.9 barg (1,000 psig)

  • Industry standard installation options

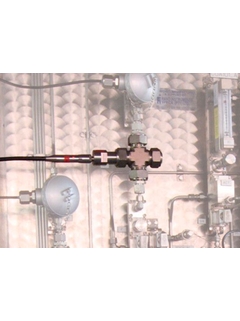

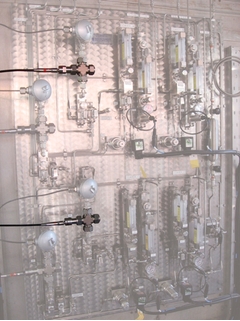

  • Direct insertion, side insertion, or sample loop

  • Suitable for hazardous area/classified environments
