Overzicht specificaties
Measured variables
CH4, CO, CO2, Corg, HCl, HF, H2O, NH3, NO, NO2, N2O, O2, SO2, NOx, C3H8, C2H6
Ambient temperature range
+5 °C ... +35 °C
Toepassingsgebied

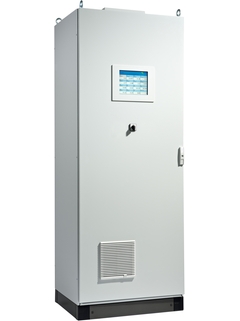

The FTIR measurement principle enables the simultaneous acquisition of more than 12 measuring components. The MCS100FT FTIR analyzer system with its heated measuring cell made of corrosion-resistant material also enables monitoring of hydrogen fluoride limits as required by legislation. With its reliable measurement technology, easy operation, and low maintenance requirements, the MCS100FT provides a hassle-free solution concept that offers unequaled opportunities.
Emission monitoring in waste incineration plants
Reliable HF limit value monitoring
Monitoring of gaseous emissions in cement or power plants
Device properties:
Small suitability-tested HF measuring range: 0 ... 3 mg/m³
Automatic spectrum adjustment via AutoVAL for reliable measured values
Suitability-tested according to EN15267
Remote control and diagnosis via SOPAS ET software
Automatic adjustment of the analyzer
Automatic backwashing and filter cleaning of the extraction unit
Voordelen
Reliable HF limit value monitoring
Just one analyzer for over 12 measuring components
Easy integration into the customer network environment
Long 6-month maintenance interval for many measuring components
Suitability-tested measurement of greenhouse gases such as N2O, CH4 and CO2
Low maintenance effort
Xpert selectie
Technische topkwaliteit
Eenvoud
©Endress+Hauser
Eenvoudige producten
Gemakkelijk te selecteren, installeren en gebruiken
Technische topkwaliteit
Eenvoud
Standaardproducten
Betrouwbaar, robuust en onderhoudsarm
Technische topkwaliteit
Eenvoud
High-end producten
Functioneel en uiterst doelmatig
Technische topkwaliteit
Eenvoud
Technische topkwaliteit
Eenvoud
FLEX selectie
Technische topkwaliteit
Eenvoud
Fundamental selectie
Voldoe aan uw basismeetvoorwaarden
Technische topkwaliteit
Eenvoud
Lean selectie
Beheers eenvoudig uw belangrijkste processen
Technische topkwaliteit
Eenvoud
Extended selectie
Optimaliseer uw processen met innovatieve technologieën
Technische topkwaliteit
Eenvoud
Xpert selectie
Beheers uw meest uitdagende applicaties
Technische topkwaliteit
Eenvoud
Loading alternative products
Succesverhalen
Beveiliging van grondstoffen
Melamin bewaakt oplosmiddeloverdrachten om een nauwkeurige levering van trucks naar de juiste tanks in de chemische industrie te waarborgen.
Lees het hele verhaal
Measuring hydrogen quality in real time
Enapter uses optical analytical measurement technology from Endress+Hauser to determine the purity of hydrogen produced. Find out more!
Lees het hele verhaal
Meetprincipe
FTIR spectroscopy, flame ionisation detection, Zirconium dioxide sensor
Measured variables
CH4, CO, CO2, Corg, HCl, HF, H2O, NH3, NO, NO2, N2O, O2, SO2, NOx, C3H8, C2H6
Performance-tested measurands
CH4, CO, CO2, Corg, HCl, HF, H2O, NH3, NO, NO2, N2O, O2, SO2
Measuring range
CH4: 0 ... 70 ppm / 0 ... 210 ppm
Ambient temperature range
+5 °C ... +35 °C
Conformities
Approved for plants requiring approval:
Meest gedownload
Product family: MCS, MCS100FT, MCS200HW
Product root: IMCS1F-, IMCS2H-
Region: Eurasian Economic Union
Approval agency: EAC
Approval number: ЕАЭС KZ.7500525.13.12.00756
Taal:
Unknown
Versie:
18/09/2025
Bestandsgrootte:
1.1 MB
Bestandsnaam:
9431150_00_AP_MCS200HW_MCS100FT_kk_EAC_KZ-7500525-13-12-00756.pdf
15 documenten
EN
NL
Deens Duits Ests French Italiaans Noors Portugees Russisch
01/01/2025
Taal:
Nederlands
Versie:
01/01/2025
Bestandsgrootte:
2.6 MB
Bestandsnaam:
8030802_AE00_OI_SFU_IP23_nl_V3-0_2016-02_EHS.pdf
SFU weatherproof enclosure
Gas Sampling Unit with Weatherproof Enclosure
EN
NL
Duits Italiaans
01/01/2025
Taal:
Engels
Versie:
01/01/2025
Bestandsgrootte:
2.6 MB
Bestandsnaam:
8029817_14SF_OI_SFU_IP54_en_V1-1_2019-07_EHS.pdf
Modular I/O System -
Analog and Digital Interface Modules
The modular I/O system serves for the input and output of analog
EN
NL
Deens Duits Ests French Noors Portugees Russisch Zweeds
01/01/2025
Taal:
Engels
Versie:
01/01/2025
Bestandsgrootte:
1.5 MB
Bestandsnaam:
8031179_AE00_OI_Mod_System_IO_en_V1-1_2012-08_EHS.pdf
FTIR Multicomponent Analysis System for Continuous Flue Gas Monitoring
EN
NL
Duits Spaans French Italiaans Turks Chinees
01/01/2025
Taal:
Engels
Versie:
01/01/2025
Bestandsgrootte:
3.6 MB
Bestandsnaam:
8029896_1K96_OI_MCS100FT_en_V2-2_2023-11_EHS.pdf
De SCU (System Control Unit) is een bedieningseenheid voor de
EN
NL
Duits Spaans French Italiaans Russisch
01/01/2025
Taal:
Nederlands
Versie:
01/01/2025
Bestandsgrootte:
3.3 MB
Bestandsnaam:
8031416_AE00_OI_SCU_nl_V3-0_2016-08_EHS.pdf
for non-Ex analyzer devices
Taal:
Engels
Versie:
01/01/2025
Bestandsgrootte:
2.4 MB
Bestandsnaam:
8030257_XA_Safety_Information_non-Ex_ml_V1-0_2016-06_WEB.pdf
Additional Information for Extractive Gas Analyzers
Taal:
Engels
Versie:
01/01/2025
Bestandsgrootte:
1.9 MB
Bestandsnaam:
8030255_AE00_SD_EN_61010_Extractive_ml_V1-0_2022-09_EHS.pdf
Solutions for waste-to-energy plants
Endress+Hauser offers ideal automation and safety solutions for collection, sorting and recycling of waste.
Taal:
Engels
Versie:
01/01/2025
Bestandsgrootte:
2.4 MB
Bestandsnaam:
8030416_SO_Waste_en_V1-0_2025.01_EHS.pdf
Soluzioni per il monitoraggio delle
emissioni
Soluzioni per il monitoraggio delle
Taal:
Italiaans
Versie:
27/05/2025
Bestandsgrootte:
4.5 MB
Bestandsnaam:
CP01596C16IT01.25-00.pdf
Emission Monitoring Solutions – broad instrument portfolio and
longstanding experience
An overview brochure about emission monitoring, their measuring
Taal:
Engels
Versie:
01/01/2025
Bestandsgrootte:
9.9 MB
Bestandsnaam:
8029975_CP_Emission_Monitoring_Solutions_en_V3-0_2025.01_EHS.pdf
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
GLASFIBER FILTER COMPLETE
TEMPERAT.CONTROLER HC 4A W.POWER RELAIS
TEMP.CONTR.HC 4A WITHOUT POWER RELAIS
TEMPERAT.CONTROLER HC8A W.POWER RELAIS
TEMPERAT.CONTROLER HC16A W.POWER RELAIS
TEMP.CONTR.HC 8A WITHOUT POWER RELAIS
TEMP.CONTR.HC 16A WITHOUT POWER RELAIS
DIGITAL OUT 3-SIGNAL MODULE
CONNECTION CABLE 1 LPFT01 - LPFT02
MAINTENANCE KIT GASKETS GIU
MAINTENANCE KIT WINDOW/GASKETS LWK FT
WEARPART SET MIRROR LWK FT
VERBINDUNGSKABEL 2 LPFT01 - LPFT03
VERBINDUNGSKABEL 3 LPFT03 - LPFT02
SEALING SET CONNECTION PLATE GFB BL-BG
SP-SET COMB. AIR, COMB. GAS HOSE GEH-PRM
SP-SET TEMPERATURE SENSOR
REPLACEMENT.DOOR W.PPC W/O.WINDOW PROG.
REPLACEMENTKIT DOOR W.PPC W.WINDOW PROG.
SERCICE CASE TIGHTNESS TEST
MAINTENANCE KIT GASKETS GIU INCL.TOOL
E-SET CAPILLARY GF MCS100FT
SINTERED FILTER DISC SET 7UM (AU) FT
E-SET TEMP.CONTROLLER 1 90-264V PROG.
SP-SET PRESSURE MODULE V4
SP-SET EXCHANGE PCBA-MODUL,LINUX CPU FID
SP-SET GEH ASSEMBLED F.CAPILLARIES
PCBA-LPFT03 FID CONTROL ESD FPT CHECKED
SP-SET CONVERSION FAN E-HOUSING
E-SET TEMP.CONTROLLER 2 90-264V PROG.
E-SET TEMP.CONTROLLER 2 24V PROG.
E-SET TEMP.CONTROLLER 3 90-264V PROG.
SP-SET EXCHANGE PRESSURE MODULE V4
SP-SET EXCHANGE PRESSURE MODULE V3-V4
SP-SET SPARE OXYGEN SENSOR
SP-SET NON RETURN VALVE WITH NOZZLE
SP-SET PRESSURE CONTROL MODULE FUEL GAS
CONNECTION CABLE 1 LPFT01 - LPFT02
CONNECTION CABLE 3 LPFT03 - LPFT02
SP SET CABLE 1 LPFT01 - IR CUBE
PC,PANEL W.CF-CARD FOR MCS100FT
SP-SET PCB-MOD. LINUX DL-HF HIGHER 0,5MG
SP-SET PCB-MOD. LINUX DL-HF LESS 0,5MG
SP-SET EXC.PCB-LPFT01 DL-HF HIGHER 0,5MG
SP-SET EXC.PCB-LPFT01 DL-HF LESS 0,5MG
SCREW IN ADAPTER G1/8 D6 NPQH
SCREW IN ADAPTER G1/8 D8 NPQH
BULKHEAD FITT.STRAIG 1/4"
FEMA.CONNEC. 90DEG 1/4" NPT1/4" SS
FEMA.CONNEC. 90DEG 3/8" NPT1/4" SS
FEMA.CONNEC. 90DEG 6MM NPT1/4" SS
FEMA.CONNEC.STRAIGHT 6MM NPT1/4" SS
MALE CONNEC. 90DEG 1/4" NPT1/4" SS
MALE CONNEC. 90DEG 8MM NPT1/4" SS
MALE CONNEC.STRAIGHT 1/16" G1/ 8"-A SS
MALE CONNEC.STRAIGHT 6MM G1/8"-A SS
BULKHEAD FITT.STRAIG DN6/8 DN6/8 AL
BULKHEAD FITT.STRAIG 8MM 8MM SS
NUT,UNION F. FITT. OD 1/16" SS
FRONT CLAMP RING 1/16" SS
SEAL RING 10,4/ 16,02-SS/FKM G1/8"
TUBE,SLST 1,590,36-1.4435 (316L)
O-RING 71.12 2.62 FKM 75 SH.A BK
O-RING 94.92 2.62 FKM 75 SH.A BK
DRY CARTRIDGE IR-CUBE REGENERATIVE
FLANGE WINDOW BAF2 IR-CUBE
GASKET IR-CUBE OPTIC/EL. (OUTER) WT
O-RING 2803 IR-CUBE OPTIK/EL.(INNER) BK
PROTECTION GLASSES 0,01W 625-650NM R1
PUSH-IN FITT. D 6 D 6 90GRD BRAS-NIPL
PUSH-IN FITT. D 8 D 8 90GRD BRAS-NIPL
HEATING,SR B 0,8M 115V/450W PT100 A.DSP
HEATING,SR B 0,8M 230V/450W PT100 A.DSP
HEATING,SR B 1,0M 115V/450W PT100 A.DSP
HEATING,SR B 1,0M 230V/450W PT100 A.DSP
HEATING,SR B 1,5M 115V/450W PT100 A.DSP
HEATING,SR B 1,5M 230V/450W PT100 A.DSP
HEATING,SR B 2,0M 115V/450W PT100 A.DSP
HEATING,SR B 2,0M 230V/450W PT100 A.DSP
RELAIS,SEMIC. 4- 15VDC IL= 25A 280V
RESISTOR-THERMOM.PT100 L=55MM TE-TEN.LSP
PRES.SENSOR 0,7-1,2BAR ABS 0-2V A.DSP
KATALYSATOR EDELMETALL 230V 10L/MINN.LSP
HEATCART.GIRL. 2-HP 115V 230W 1080A.DSP
CABLE, MALE/MALE 1M0 RJ45 CROSSKAT7
LASER HE/NE 633NM IR-CUBE
MIR-SOURCE ADJUSTED IR-CUBE
MAG.VALV.2/2A 24V/50/60 5BAR N1/8 2D5 VA
MAG.VALV.2/2A 24V/50/60 6BAR G1/8 3D0 MS
RELAIS,PCB 360R 12VDC 2CO
VENTILATOR,FILTER 230V 230CBM/H RAL7035
VENTILATOR,FILTER 115V 230CBM/H RAL7035
PCB ANA27 FOR DTGS DETECTORS
RELAIS,SEMIC. 10- 32VDC IL= 10A 230V
HEATING,SR B 0,5M 230V/350W PT100 A.DSP
HEATING,SR B 0,5M 115V/350W PT100 A.DSP
CATALYZER 230V TC 10L/MIN A.DSP
CATALYZER 115V TC 10L/MIN A.DSP
MAINT. KIT F. GAS SAMPL. FILTER -V4A/AU
SINTERED FILTER DISC SET FT
AIR DEFLECTOR W.GROUNDING COMPLETE
SEAL. DISK D52.5/24 S3 TOP-CHEM
MALE CONNEC. 90DEG 10MM NPT1/4" SS
FILTER SET PROBE 2UM DM35 NPT1/4" 1.4539
FILTER SET PROBE 10UM DM35 NPT1/4"1.4539
FILTERSET F.AIR PREPARATION
PUSH-IN FITT. D10 I-G1/2 90DEG BRAS-NIPL
FILTER ELEM. ACTIVE COIL DF-A0035
MAG.VALV.3/2D 24V/50/60 6BAR G1/8 2D0 MS
MAG.VENT.3/2D 24V/50/60 6BAR G1/8 2D0 VA
GRIP COMPLETE FOR GAS SAMPLING FILTER
MAINTENANCE KIT SAMPLING GAS FILTER
SP-SET FILTER ELEMENT F.INSTRUMENT AIR
PRESSURE SPRING DM=20, D=2.0
PRESSURE SPRING DM=26.9, D=1.4
O-RING 10.77 2.62 FFKM75 SH.A
O-RING 52 2.5 N-FPM75/VITON
O-RING 80 3 N-FPM75/VITON
LOCK WASHER 12 -X12CRNI17-7 BK
RETAINING RING 72 2,5 -X12CRNI17-7
MANOMETER G1/2" 0- 10 BAR D= 50MM
KIT, REPAIR F. THREA. INSERT M6 HELIC.
O-RING 48.00 2.00 NBR 70 SH.A BK
HEAT.CARTRIDGE 115V 200W 10130 A.DSP
PCBA-LPX20 HEAT CONTROL 8X ESD
OPTICAL DUPLEX FIBER CABLE 1,55
MAINT. KIT F. GAS SAMPL. FILTER-GLASSF.
MALE CONNEC.STRAIGHT 6MM NPT1/4" SS
SWITCH,THERMO 235 +- 8GRAD 1NC A.DSP
SWITCH,THERMO 235 +- 8GRAD 1NC LIM.
SP-SET SERVICE KIT PT100 F. HOSES 250°C
CHECK VALVE NPT1/4" 25PSI FPM SS
MAINTEN. SET OFP 0005 SUPERPLUS
