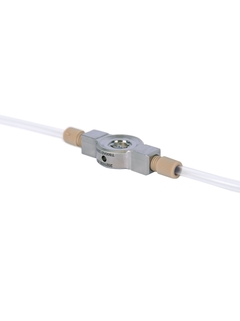

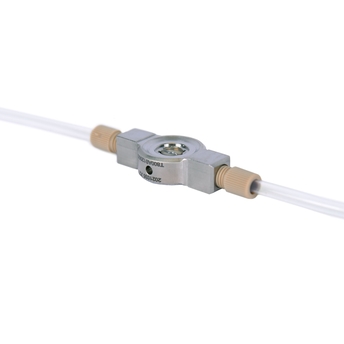

Micro-cellule à flux continu Raman

- F
- L
- E
- X
Chambre de passage Raman raccordée à
Données clés
-
Matériaux en contact avec le produit
Corps : Inox 316L
Fenêtre : Matériau propriétaire, optimisé pour les bioprocess
Fini de surface : finition Ra 15 avec électropolissage conforme ASME BPE SF4
Adhésif : compatible USP Class VI et ISO 10993 -
Méthode de stérilisation
NEP/SEP
Domaine d'application
La cellule à flux continu Raman répond aux exigences de rapidité des process en aval en optimisant la collection Raman pour une faible turbidité, des échantillons de faible volume. Idéal pour les débits en développement, la cellule à flux continu Raman assure une surveillance en temps réel, une optimisation rapide du process et un contrôle de process pour la chromatographie et autres opérations en aval.
En aval : agrégation, cristallisation des protéines, stabilité de la formule, produit CQA, concentration en protéines, excipients tampons
Avantages
La
Extended selection
-
Produits haut de gamme
- Hautement fonctionnel et pratique
Excellence technique
Simplicité

-
Produits simples
- Facile à sélectionner, à installer et à utiliser
Excellence technique
Simplicité
-
Produits standard
- Fiable, robuste et effort de maintenance réduit
Excellence technique
Simplicité
-
Produits haut de gamme
- Hautement fonctionnel et pratique
Excellence technique
Simplicité
-
Produits spécialisés
- Conçu pour les applications exigeantes
Excellence technique
Simplicité
Variable
FLEX selections | Excellence technique | Simplicité |
---|---|---|
Fundamental selection Parfait pour les applications de base |
Excellence technique
|
Simplicité
|
Lean selection Performances optimales pour piloter les applications standards |
Excellence technique
|
Simplicité
|
Extended selection Fonctionnalités avancées pour maximiser vos process |
Excellence technique
|
Simplicité
|
Xpert selection Performances exceptionnelles pour applications exigeantes |
Excellence technique
|
Simplicité
Variable |
-
Principe de mesure
Spectroscopie Raman
-
Température
Fonctionnement :
0 à 40 °C / 32 à 104 °F
Stockage :
-20 à 60 °C / -4 à 140 °F -
Humidité relative
Stockage :
< 90 % sans condensation -
Dimensions de l'appareil (largeur x hauteur x profondeur)
46 x 25 x 11 mm
1,8 x 1,0 x 0,4 inch -

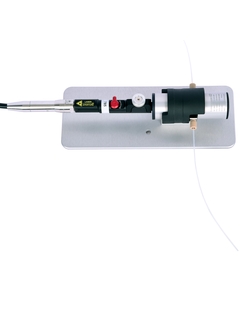

Compatibilité sonde d'échantillonnage
Raman Rxn-10
-
Compatibilité optique d'échantillonnage

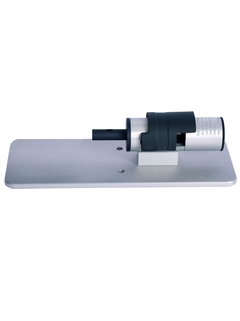

plateforme de micro-débit
-
Pression
Pression max : 4,8 barg / 70 psig
-
Matériaux en contact avec le produit
Corps : Inox 316L
Fenêtre : Matériau propriétaire, optimisé pour les bioprocess
Fini de surface : finition Ra 15 avec électropolissage conforme ASME BPE SF4
Adhésif : compatible USP Class VI et ISO 10993 -
Méthode de stérilisation
NEP/SEP
-
Raccord process
Ferrules fond plat 5/16-24
Tuyau d'un diamètre extérieur jusqu'à 3/16 inch -
Épaisseur de la voie du produit
2,5 mm
-
Conditions de débit
Laminaire
-
Débit volumique maximal de la cuvette
15 ml/min
-
-
